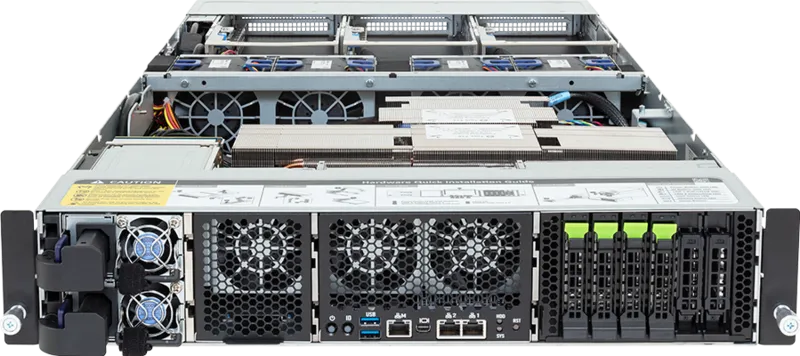

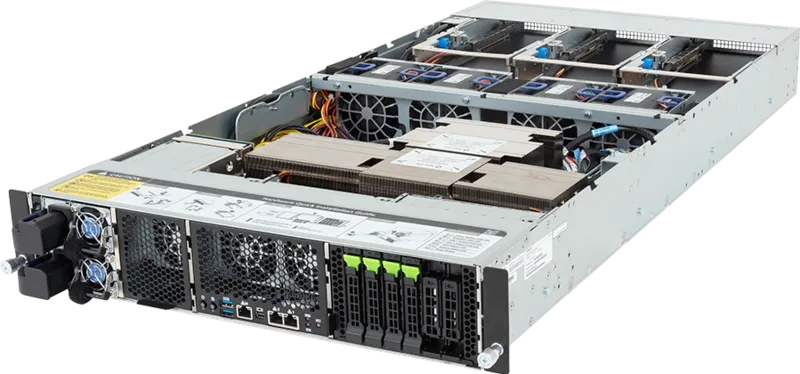

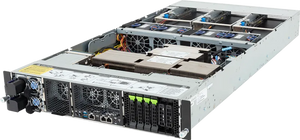

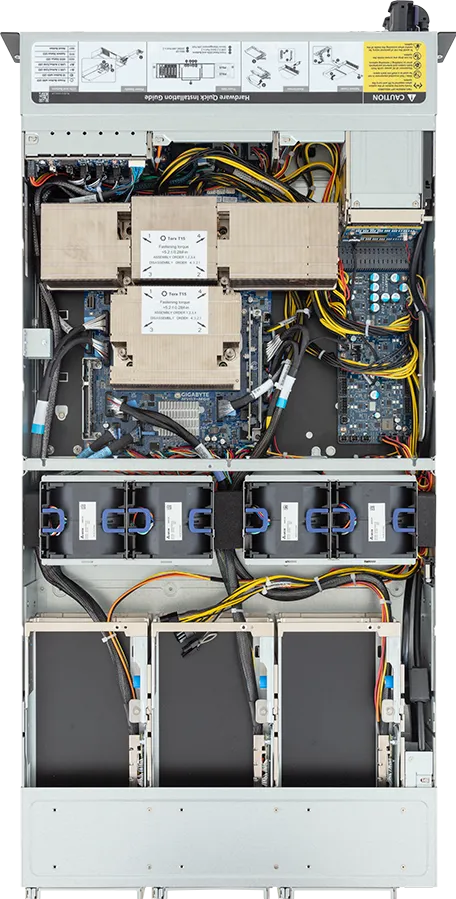

Gigabyte XH23-VG0-AAJ1 2U NVIDIA Grace Hopper 480GB RAM 96GB GPU Dual CPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte XH23-VG0-AAJ1 2U system with MVG3-MG0 motherboard features an NVIDIA GH200 Grace Hopper Superchip, combining a 480GB LPDDR5X ECC memory with 96GB HBM3 GPU memory, and PCIe Gen5 expansion. It includes dual 2000W power supplies, multiple storage options with Gen5 NVMe and M.2 slots, and supports advanced cooling with high-speed fans for optimal performance in a 10°C to 35°C operating environment.
Specifications
Model Number: XH23-VG0-AAJ1
Brand: Gigabyte
Alt Part Number(s): XH23-VG0-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: XH23-VG0-AAJ1
Form Factor: 2U
Dimensions: 438 x 87 x 900 mm
Motherboard: MVG3-MG0
Superchip: NVIDIA GH200 Grace Hopper™ Superchip: 1 x NVIDIA Grace™ CPU; 1 x NVIDIA Hopper™ GPU; Connected with NVIDIA NVLink™-C2C; TDP up to 1000W (CPU + GPU + memory)
Memory: NVIDIA Grace™ CPU: 480GB of LPDDR5X memory with ECC; Memory bandwidth up to 512GB/s
NVIDIA Hopper™ GPU: 96GB HBM3; Memory bandwidth up to 4TB/s
LAN: Front: 2 x 10Gb/s LAN (1 x Intel® X550-AT2); Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Storage: Front: 4 x 2.5" Gen5 NVMe (NVMe from PEX89048)
Internal M.2 (CMTP0A3): 2 x M.2 (2242/2260/2280/22110), PCIe Gen5 x4, from PEX89048
PCIe Expansion Slots: PCIe Cable x 3: 3 x FHFL x16 (Gen5 x16), from CPU
Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input: 100-127V~/ 13A, 50-60Hz; 200-220V~/ 10A, 50-60Hz; 220-240V~/ 10A, 50-60Hz
Security Modules: 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM012
System Management: ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
System Fans: 3 x 60x60x56mm (24,000/23,200rpm)
4 x 80x80x80mm (18,700/15,100rpm)
Operating Properties: Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Operating Temperature: Non-operating temperature: -40°C to 60°C
Operating Humidity: Non-operating humidity: 20% to 95% (non-condensing)
