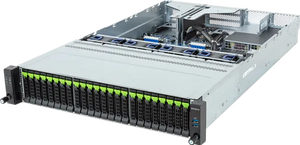

Gigabyte R263-Z36-AAD1 2U AMD EPYC 9005/9004 12-Channel DDR5 1600W Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview

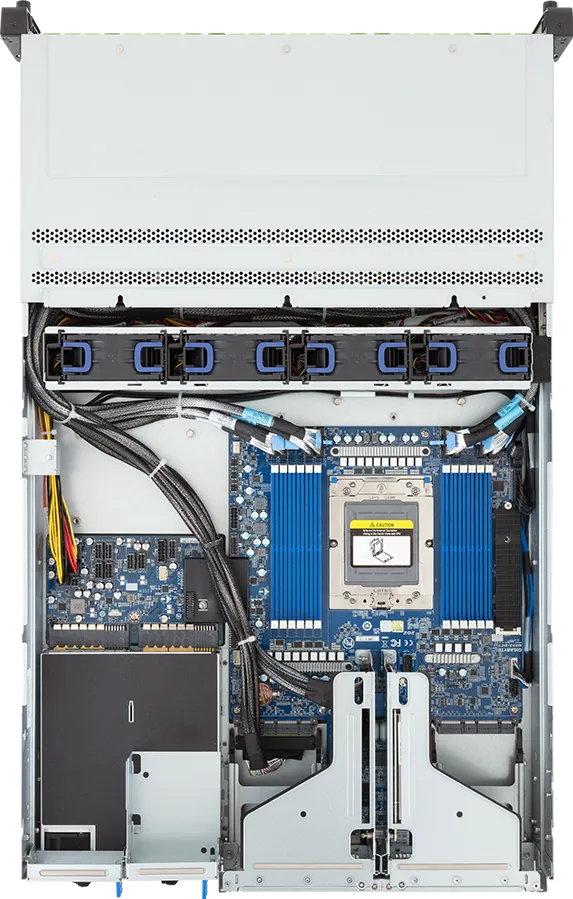

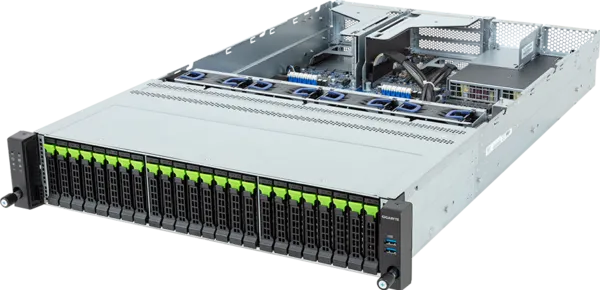

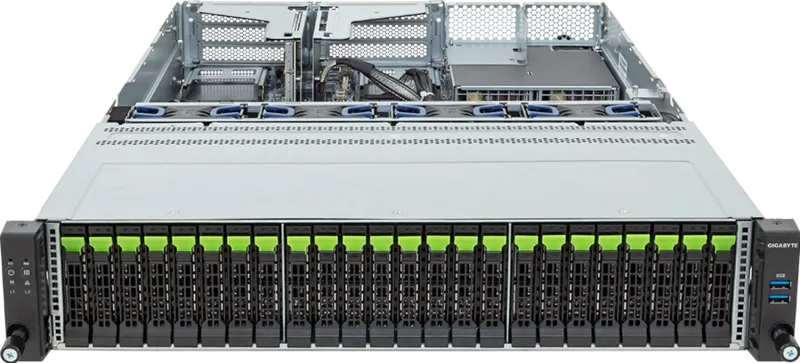

Gigabyte R263-Z36-AAD1 2U server with MZ33-DC1 motherboard supports AMD EPYC 9005 and 9004 series processors, offering up to 500W cTDP and 12-channel DDR5 RDIMM memory. It includes 24 hot-swap 2.5" Gen5 NVMe storage, PCIe Gen5 slots for expansion, dual 1600W redundant power supplies, and integrated ASPEED AST2600 for system management in a 10°C to 30°C operating range.
Specifications
Model Number: R263-Z36-AAD1
Brand: Gigabyte
Alt Part Number(s): R263-Z36-AAD1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R263-Z36-AAD1
Form Factor: 2U
Dimensions: W438 x H87.5 x D710 mm
Motherboard: MZ33-DC1
CPU: AMD EPYC 9005 Series Processors; AMD EPYC 9004 Series Processors
Single processor, cTDP up to 400W; At 25°C ambient, cTDP up to 500W; At 30°C ambient, cTDP up to 500W with optional heatsink
Socket: 1 x LGA 6096 (Socket SP5)
Chipset: System on Chip
Memory: 12-Channel DDR5 RDIMM, 12 x DIMMs
[EPYC 9005] Up to 6400 MT/s
[EPYC 9004] Up to 4800 MT/s
LAN: 1 x 1Gb/s LAN (1 x Intel I210-AT); Support NCSI
1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED AST2600: 1 x Mini-DP
Storage: Front hot-swap: 24 x 2.5" Gen5 NVMe
Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, NVMe supported only
RAID: Require RAID add-in cards
Optional compatible RAID Cards: NVMe/NVMe-oF RAID Cards with SupremeRAID by Graid Technology
RAID Card models: SR-1000-FD32, SR-1010-FD32
Support RAID 0/1/5/6/10
PCIe Expansion Slots: 1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
I/O Ports: Front: 2 x USB 3.2 Gen1
Rear: 2 x USB 3.2 Gen1; 1 x Mini-DP; 1 x RJ45; 1 x MLAN
Backplane Board: PCIe Gen5 x4
TPM: 1 x TPM header (SPI), Optional TPM2.0 kit: CTM012
Power Supply: 1+1 1600W 80 PLUS Platinum redundant power supplies
AC Input: 100-240V
System Management: ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
System Fans: 4 x 80x80x38mm
Operating Properties: Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
