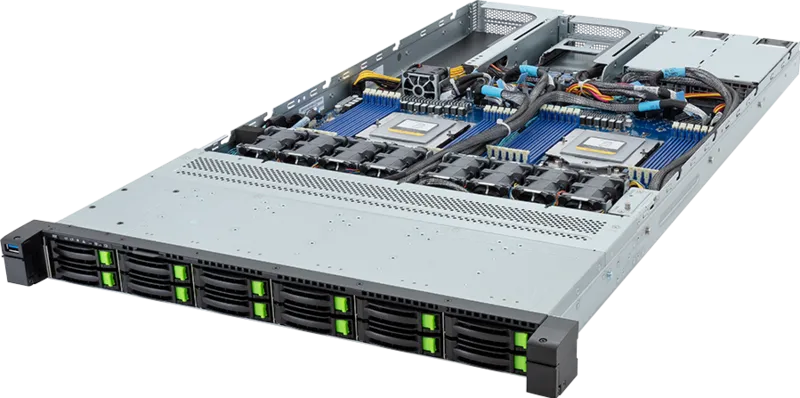

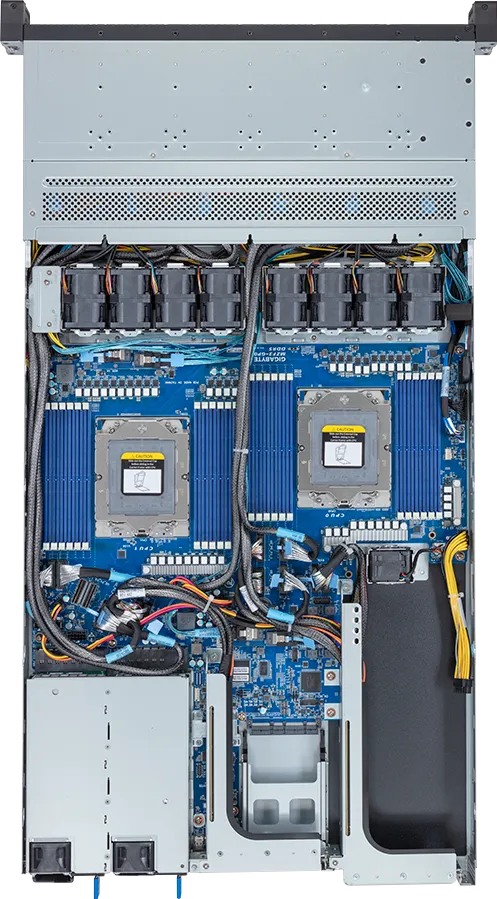

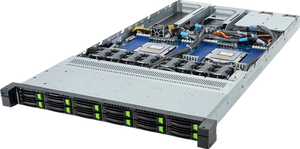

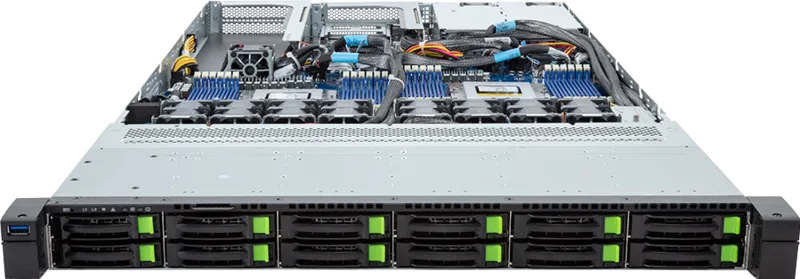

Gigabyte R183-ZF1-AAJ1 1U AMD EPYC Dual Processor 12 x 2.5in NVMe 2000W Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte R183-ZF1-AAJ1 1U server, equipped with AMD EPYC 9005 and 9004 series processors, supports dual processors with up to 400W cTDP and 12-channel DDR5 memory. It features 12 hot-swappable 2.5" Gen5 NVMe/SATA/SAS-4 bays, PCIe Gen5 slots for GPUs and expansion, and dual 2000W redundant power supplies, making it ideal for high-performance, scalable computing in a compact 1U form factor.
Specifications
Model Number: R183-ZF1-AAJ1
Brand: Gigabyte
Alt Part Number(s): R183-ZF1-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R183-ZF1-AAJ1
Form Factor: 1U
Dimensions: W438 x H43.5 x D815 mm
Motherboard: MZF3-GP0
CPU: AMD EPYC™ 9005 Series Processors; AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W
Socket: 2 x LGA 6096 (Socket SP5)
Chipset: System on Chip
Memory: 12-Channel DDR5 RDIMM, 24 x DIMMs
Up to 4800 MT/s
LAN: 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED AST2600: 1 x Mini-DP
Storage: Front hot-swap: 12 x 2.5" Gen5 NVMe/SATA/SAS-4
SAS card is required to support SAS drives
RAID: Require RAID add-in cards
PCIe Expansion Slots: 1 x FHFL PCIe Gen5 x16, for GPUs
1 x FHFL PCIe Gen5 x16
1 x FHHL PCIe Gen5 x16
1 x OCP NIC 3.0 PCIe Gen5 x16, Support NCSI
I/O Ports: Front: 1 x USB 3.2 Gen1
Rear: 2 x USB 3.2 Gen1; 1 x Mini-DP; 1 x MLAN
Backplane Board: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM: 1 x TPM header (SPI), Optional TPM2.0 kit: CTM010
Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input: 100-240V
System Management: ASPEED AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
System Fans: 1 x 40x40x28mm
8 x 40x40x56mm
Operating Properties: Operating: 10°C to 30°C, 8% to 80% (non-condensing)
Non-operating: -40°C to 60°C, 20% to 95% (non-condensing)
