Description
Overview

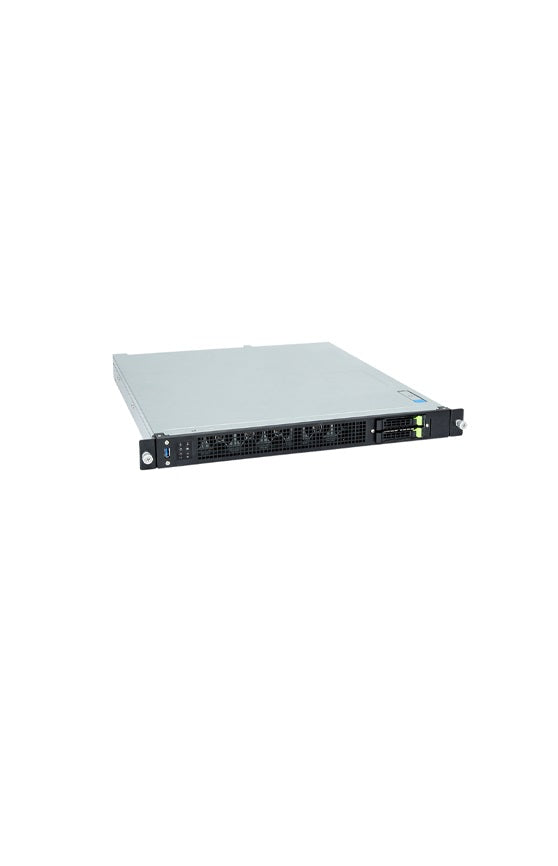

Gigabyte E163-Z30 AMD EPYC 9004 LGA 6096 800W Server System.
Specifications
Model Number: E163-Z30
Brand: Gigabyte
Alt Part Number(s): E163-Z30
Product Type: Server System
Specifications
Brand: Gigabyte
Model: E163-Z30
CPU Quantity: 1
CPU Socket: SP5 (LGA 6096)
CPU Manufacturer: AMD
CPU Supported: AMD EPYC™ 9004 series processors
Cores: Up to 128-core, 256 threads per processor cTDP up to 300W at ambient 35°C
Memory Capacity: RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported
Memory Type: DDR5 memory supported only
Memory Speed: Up to 4800 MHz
Memory Slots: 12
Chipset: System on Chip
System Management: Aspeed® AST2600 management controller Gigabyte Management Console (AMI MegaRAC SP-X) web interface
Video: Integrated in Aspeed® AST26002D Video Graphic Adapter with PCIe bus interface1920x1200@60Hz 32bpp, DDR4 SDRAM
PCI Express:
Riser Card CRS101V: 1x PCIe x16 (Gen5 x16) FHHL slot
Riser Card CRS101W: 1x PCIe x16 (Gen5 x16) FHHL slot 2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth Support NCSI function
1x M.2 slot: M-key PCIe Gen3 x4 Supports 2280/22110 cards
Storage: Front side: 2x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays SAS card is required for SAS devices support
Internal I/O
1x M.2 slot
1x TPM header
2x OCP 3.0 slots
Front I/O
1x USB 3.2 Gen1
1x Power button with LED
1x ID button with LED
1x NMI button
1x Reset button
1x LAN activity LED
1x HDD activity LED
1x System status LED
Rear I/O
2x USB 3.2 Gen1
1x Mini-DP
1x RJ45
1x MLAN
1x ID button with LED
Backplane I/O Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
LAN: Rear side: 1x 1Gb/s LAN port (1x Intel® I210-AT) Supports NCSI function 1x 10/100/1000 management LAN
TPM: 1x TPM header with SPI interface Optional TPM2.0 kit: CTM010
Power Supply: 1+1 800W redundant power supplies
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: Rackmount
