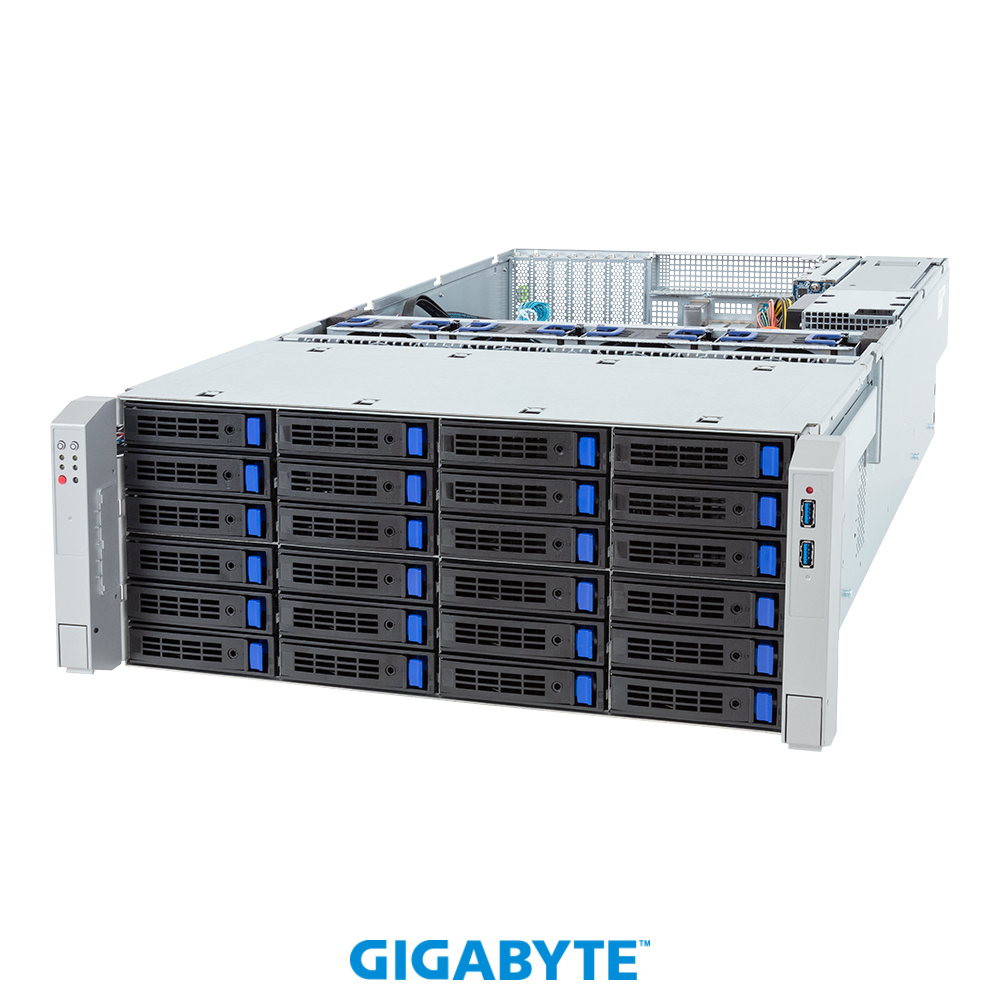

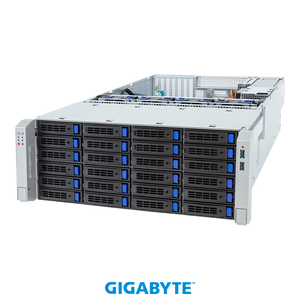

Gigabyte S453-Z30-ACV2 4U Rackmount AMD EPYC 9005/9004 24-Bay Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
GIGABYTE S453-Z30-ACV2 server system, 4U rackmount, supports a single AMD EPYC 9005 or 9004 Series processor up to 500W cTDP, 24 DDR5 RDIMM slots, 36 hot-swap SATA/SAS drive bays, one PCIe Gen4 x4 M.2 slot, and four low-profile PCIe Gen5 x16 slots. It features dual 10GbE LAN, dedicated 1GbE management LAN, ASPEED AST2600 BMC with VGA, dual 1600W 80 PLUS Titanium redundant power supplies, and eight 80 x 80 x 38 mm cooling fans.
Specifications
Model Number: S453-Z30-ACV2
Brand: Gigabyte
Alt Part Number(s): S453-Z30-ACV2
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: S453-Z30-ACV2
Form Factor: 4U Rackmount (448.5 x 174.3 x 625 mm)
Processor Support: Single AMD EPYC™ 9005 or 9004 Series Processor (Socket SP5 / LGA 6096, up to 500W cTDP)
Motherboard: GIGABYTE MZ33-AR1 (System on Chip)
Memory: 24 x DIMM slots (12-Channel DDR5 RDIMM); EPYC 9005: Up to 5200 MT/s (1DPC); EPYC 9004: Up to 4800 MT/s (1DPC)
Drive Bays & Storage: Front: 24 x 3.5"/2.5" SATA/SAS hot-swap bays; Rear: 12 x 3.5"/2.5" SATA/SAS hot-swap bays + 2 x 2.5" SATA/SAS OS boot bays; M.2: 1 x M.2 slot (2280/22110, PCIe Gen4 x4); SAS controller / HBA card required for SAS drive connectivity
Expander Backplane: Broadcom SAS35x48 expander (SATA 6Gb/s or SAS 12Gb/s per port)
PCIe Expansion: 4 x Low-Profile PCIe Gen5 x16 expansion slots
Network & Connectivity: 2 x 10Gb/s LAN ports (Broadcom BCM57416, NCSI support); 1 x 10/100/1000 Mbps dedicated Management LAN
Graphics & BMC: ASPEED AST2600 BMC controller with integrated VGA port
Rear I/O Ports: 2 x USB 3.2 Gen1 Type-A; 1 x VGA; 1 x Serial; 2 x RJ45; 1 x MLAN; ID button
Power Supply: Dual 1600W 80 PLUS Titanium redundant power supplies
Cooling: 8 x 80x80x38mm system cooling fans
