Description
Overview

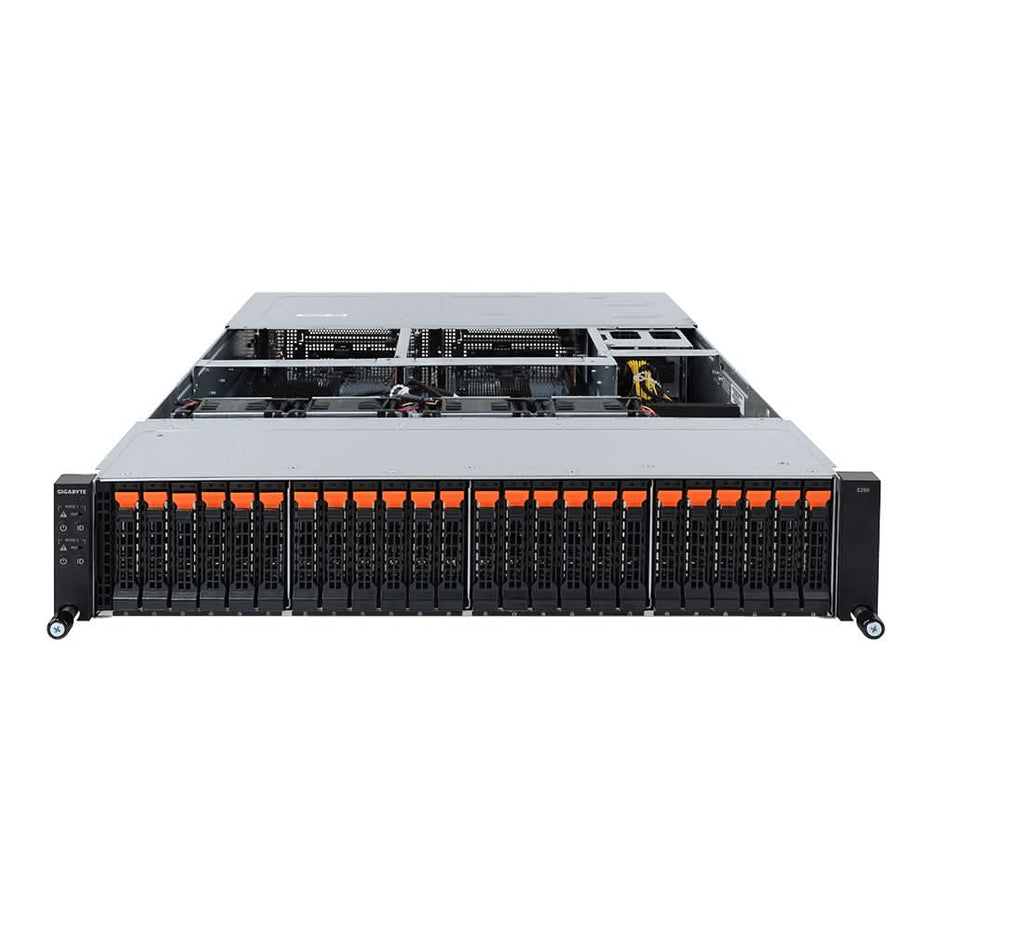

Gigabyte S260-NF0 8x SATA System on Chip 7nm 3200 MHz 256GB DDR4 Server.
Specifications
Model Number: S260-NF0
Brand: Gigabyte
Alt Part Number(s): S260-NF0
Product Type: Server
Technical Description
Brand: Gigabyte
Model: S260-NF0
Form Factor: 2U
Motherboard: 2 × CPBD530
PCIe Switch: Embedded Microsemi PM8536B-FEI with 96 lanes
NVMe Control: Each CPBD530 controls 12 × NVMe SSDs via PCIe x4 per port
Pre-installed HBA: 1 × Western Digital Onyx NVMe Host Bus Adapter per CPBD530
Max HBAs per Node: 3 × PCIe Gen3 x16 Onyx NVMeOF HBAs per node
CPU: Western Digital Onyx NVMeOF Bridge ASIC
Ethernet: 1 × 100GbE or 2 × 50GbE (QSFP28 interface)
Management LAN: 1 × 10/100/1000
Video: Integrated Aspeed AST2520
Drive Bays: 24 × 2.5″ NVMe hot-swappable
Expansion Slots: 2 × PCIe Gen3 x16 full-height, 1 × PCIe Gen3 x16 low-profile per node
Backplane Bandwidth: PCIe Gen3 x4
Power Supply: 2 × 800W 80 PLUS Platinum redundant
System Management: Aspeed AST2520 management controller
Cooling: 4 × 80×80×38 mm fans (16,300 RPM)
Operating Temperature: 10 °C to 35 °C
Operating Humidity: 8%–80% (non-condensing)
