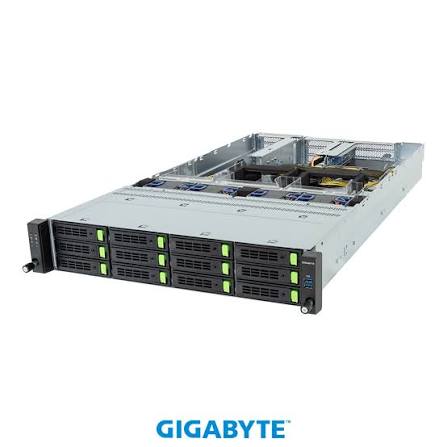

Gigabyte R284-SF0-AAL1 2U Rackmount, Dual Socket LGA-4710, 12-Bay NVMe/SATA/SAS-4 Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte R284-SF0-AAL1 2U Rackmount Server System features dual Socket E2 LGA-4710 support for Intel Xeon 6 6700 and 6500 Series processors with up to 350W TDP per CPU, 32 DDR5 DIMM slots supporting RDIMM up to 6400 MT/s and MRDIMM up to 8000 MT/s, and support for up to four dual-slot FHFL PCIe Gen5 x16 GPUs. It provides 12 front hot-swap 3.5-inch or 2.5-inch Gen5 NVMe, SATA, or SAS-4 bays, multiple PCIe Gen5 expansion slots, a 10/100/1000 Mb/s management LAN with ASPEED AST2600 BMC, and dual 2700W 80 PLUS Titanium redundant power supplies.
Specifications
Model Number: R284-SF0-AAL1
Brand: Gigabyte
Alt Part Number(s): R284-SF0-AAL1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model Number: R284-SF0-AAL1
Form Factor: 2U Rackmount (438 x 87.5 x 815 mm)
Processor Support: Dual Socket LGA-4710 (Socket E2); Intel Xeon 6 6700/6500 Series; TDP up to 350W per CPU
Memory: 32 x DDR5 DIMM slots; 8-channel per CPU; RDIMM up to 6400 MT/s; MRDIMM up to 8000 MT/s
GPU Support: Up to 4 x dual-slot FHFL PCIe Gen5 x16 GPUs
Storage Bays: 12 x 3.5"/2.5" front hot-swap Gen5 NVMe/SATA/SAS-4 bays; 1 x M.2 2280/22110 PCIe Gen5 x4 slot
Expansion Slots: 4 x FHFL PCIe Gen5 x16; 1 x FHHL PCIe Gen5 x16; 1 x OCP NIC 3.0 PCIe Gen5 x16 slot with NCSI support
Networking & Management: 1 x 10/100/1000 Mb/s Management LAN; integrated ASPEED AST2600 BMC
Power Supply: Dual 2700W 80 PLUS Titanium redundant power supplies
System Cooling: 4 x 80x80x56mm system fans; 1 x 40x40x28mm fan
Front I/O Ports: 2 x USB 3.2 Gen1 Type-A; Power Button; System Reset; ID Button; NMI Button; Status LEDs
Rear I/O Ports: 2 x USB 3.2 Gen1 Type-A; 1 x Mini-DP; 1 x MLAN port; 1 x ID LED
