- Overview

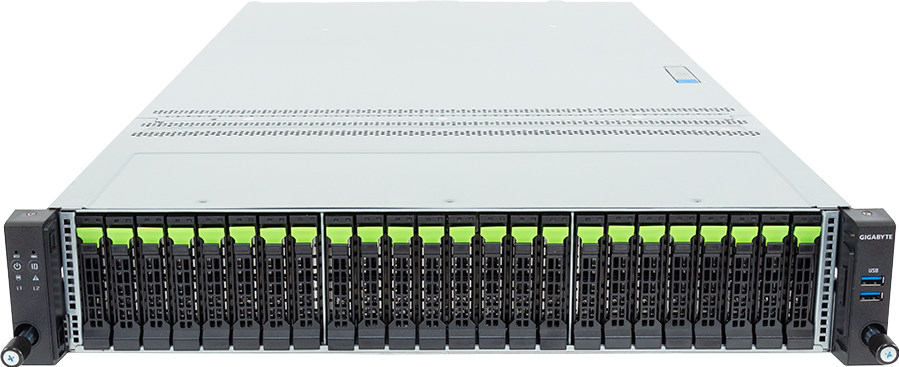

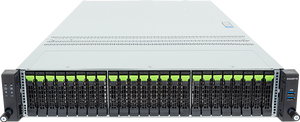

Gigabyte R284-S92-AAJ1 Rack Server is a 2U rackmount system featuring dual Intel Xeon processors, dual LGA 4710 Socket E2 CPU sockets supporting up to 350W TDP per processor, and 32 DDR5 DIMM slots with up to 4TB RDIMM or MRDIMM memory. It provides 24 front 2.5-inch Gen5 NVMe, SATA, or SAS-4 hot-swap bays, 2 rear 2.5-inch SATA or SAS-4 bays, PCIe Gen5 expansion, an OCP 3.0 slot, dual 1Gb/s LAN ports, and redundant 2000W Titanium power supplies.
Specifications
Model Number: R284-S92-AAJ1
Brand: Gigabyte
Alt Part Number(s): R284-S92-AAJ1
Product Type: Rack Server
Technical Description
Brand: Gigabyte
Model: R284-S92-AAJ1
Form Factor: 2U Rackmount
Processor Type: Dual Intel Xeon
CPU Sockets: Dual LGA 4710 (Socket E2); Up to 350W TDP per Processor
Motherboard: MS94-FS0
Memory Slots: 32 x DDR5 DIMM Slots; 8-Channel per CPU
Memory Capacity: Up to 4TB RDIMM/MRDIMM
Front Bays: 24 x 2.5" Gen5 NVMe/SATA/SAS-4 Hot-Swap Bays
Rear Bays: 2 x 2.5" SATA/SAS-4 Hot-Swap Bays
Internal Slots: 2 x M.2 Slots; PCIe Gen5 x4
PCIe Slots & Networking: PCIe Gen5 Slots; OCP 3.0 Slot; 2 x 1 Gb/s LAN Ports; ASPEED AST2600 Video Port
Power & Dimensions: Redundant 2000W Titanium PSUs; 438 x 87.5 x 815 mm; 2U Chassis; Supports Windows Server
