- Overview

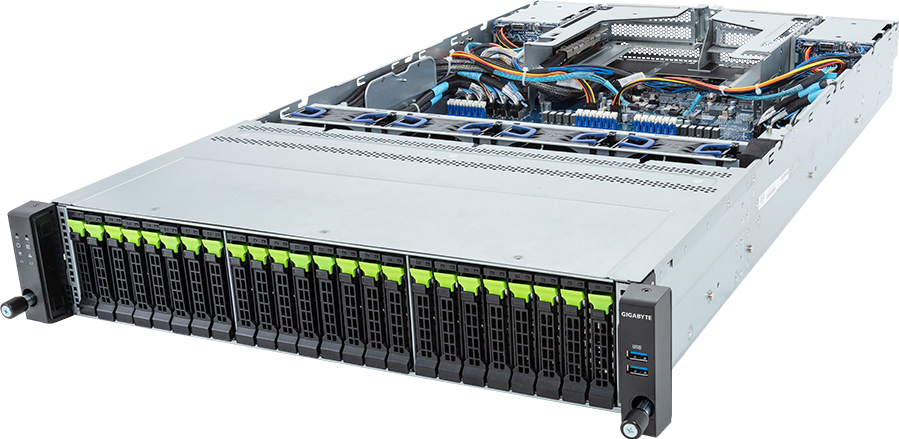

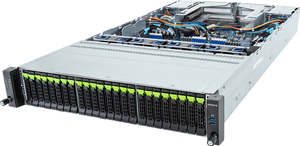

Gigabyte R283-Z96-ACJ1 server system, R283 series, is a 2U rackmount platform with dual Socket SP5 LGA 6096 support for AMD EPYC 9005 and 9004 processors, 24 DDR5 RDIMM slots with 12-channel memory up to 6400 MT/s, and 24 front hot-swap Gen5 NVMe bays. It also features four rear hot-swap SATA/SAS-4 bays, PCIe Gen5 expansion, 1 GbE networking with dedicated management LAN, integrated ASPEED AST2600 graphics and BMC, and dual 2000W 80 PLUS Titanium redundant power supplies.
Specifications
Model Number: R283-Z96-ACJ1
Brand: Gigabyte
Alt Part Number(s): R283-Z96-ACJ1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: R283-Z96-ACJ1
Form Factor: 2U Rackmount (438 x 87.5 x 815 mm)
Motherboard: MZ93-FS1
Processors: Dual Socket SP5 (LGA 6096); AMD EPYC 9005 & 9004 Series; cTDP up to 400W (-ACJ1)
Memory: 24 x DIMM slots; 12-channel DDR5 RDIMM; up to 6400 MT/s (EPYC 9005); up to 4800 MT/s (EPYC 9004)
Front Bays: 24 x 2.5" Hot-Swap Gen5 NVMe drive bays
Rear Bays: 4 x 2.5" Hot-Swap SATA/SAS-4 bays; optional SAS/RAID add-in card required for SAS
M.2 Support: 1 x M.2 (2280/22110) PCIe Gen3 x4 (CPU_0); 1 x M.2 (2280/22110) PCIe Gen3 x4 (CPU_1); 1 x M.2 (2280/22110) PCIe Gen3 x2 (CPU_1)
PCIe Slots: 1 x FHHL PCIe Gen5 x16; 1 x OCP 3.0 Mezzanine slot (PCIe Gen5 x16)
Networking: 2 x 1 Gb/s LAN ports (Intel I350-AM2); 1 x Dedicated Management LAN port
Graphics: Integrated ASPEED AST2600; 1 x Mini-DP rear
Power Supply: Dual 2000W 80 PLUS Titanium Redundant Power Supplies
System Management: ASPEED AST2600 BMC; GIGABYTE Management Console; HTML5 KVM; Remote Updates; Sensor Monitoring
