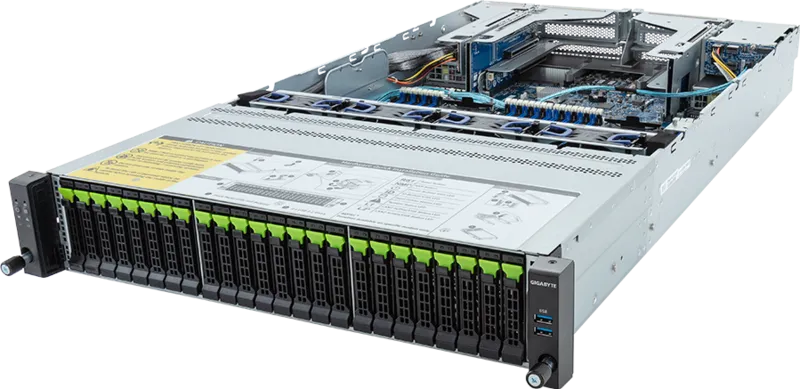

Gigabyte R283-S98-AAE1 2U Dual Intel Xeon Scalable 32 x DDR5 NVMe 2000W Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte R283-S98-AAE1 is a 2U rackmount server designed with dual 5th and 4th Generation Intel Xeon Scalable processors, offering up to 350W TDP. It includes 32 DIMM slots for DDR5 memory, 12 hot-swappable 2.5" Gen5 NVMe/SATA/SAS drive bays, and redundant 2000W 80 PLUS Platinum power supplies for enhanced performance and reliability.
Specifications
Model Number: R283-S98-AAE1
Brand: Gigabyte
Alt Part Number(s): R283-S98-AAE1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R283-S98-AAE1
Form Factor: 2U
Dimensions: 438 x 87.5 x 815 mm
Motherboard: MS93-FS0
CPU: 5th Generation Intel® Xeon® Scalable Processors; 4th Generation Intel® Xeon® Scalable Processors; Intel® Xeon® CPU Max Series; Dual processor, TDP up to 350W
Socket: 2 x LGA 4677 (Socket E)
Chipset: Intel® C741
Memory: 32 x DIMM slots; DDR5 memory supported; 8-Channel memory per processor; RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
LAN: 2 x 1Gb/s LAN (1 x Intel® I350-AM2); 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED® AST2600; 1 x Mini-DP
Storage: 12 x 2.5" Gen5 NVMe/SATA/SAS-4; 12 x 2.5" Gen5 NVMe (12 x NVMe from CPU_0, 12 x NVMe from CPU_1); 2 x 2.5" SATA/SAS-4
RAID: Intel® SATA RAID 0/1/10/5; Onboard VROC key header
PCIe Expansion Slots: 1 x FHHL x16 (Gen5 x16), from CPU_0; 1 x FHHL x16 (Gen5 x16), from CPU_1; 1 x LP x16 (Gen5 x16), from CPU_0; 2 x OCP NIC 3.0 (Gen5 x16)
Front I/O: 2 x USB 3.2 Gen1 (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button
Rear I/O: 2 x USB 3.2 Gen1 (Type-A); 1 x Mini-DP; 2 x RJ45 ports; 1 x MLAN port
Security Modules: 1 x TPM header with SPI interface; Optional TPM 2.0 kit: CTM010
Power Supply: 1+1 2000W 80 PLUS Platinum redundant power supplies
