- Overview

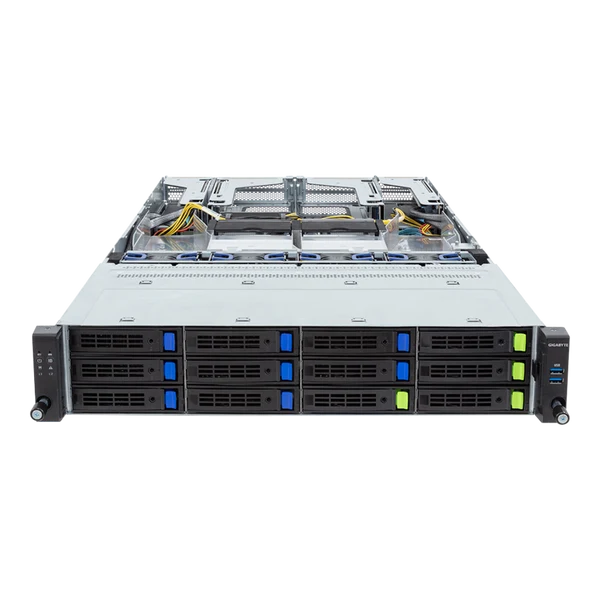

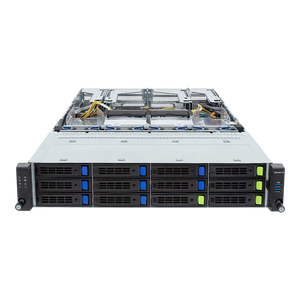

Gigabyte R283-S93-AAL1 R283 Series is a 2U rackmount server system supporting dual 5th and 4th Gen Intel Xeon Scalable or Intel Xeon CPU Max Series processors in LGA 4677 sockets, with up to 350W TDP per CPU, 32 DDR5 DIMM slots, and speeds up to 5600 MT/s. It features Intel C741, four Gen4 NVMe, SATA, or SAS bays plus eight SATA or SAS hot-swap bays, up to two dual-slot PCIe Gen5 GPUs, eight PCIe Gen5 expansion slots, dual OCP NIC 3.0 slots, redundant 2700W Titanium power supplies, and AST2600 BMC management.
Specifications
Model Number: R283-S93-AAL1
Brand: Gigabyte
Alt Part Number(s): R283-S93-AAL1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: R283-S93-AAL1
Form Factor: 2U Rackmount (438 x 87.5 x 815 mm)
Motherboard: MS93-FS0
Processor Support: Dual 5th & 4th Gen Intel® Xeon® Scalable Processors; Intel® Xeon® CPU Max Series
Socket: 2 x LGA 4677 (Socket E)
TDP: Up to 350W per CPU
Chipset: Intel® C741
Memory Slots: 32 x DDR5 DIMM slots (8-channel per processor)
Speed Support: Up to 5600 MT/s (5th Gen Xeon); up to 4800 MT/s (4th Gen Xeon)
Front Drive Bays: 4 x 3.5"/2.5" Gen4 NVMe / SATA / SAS hot-swap bays; 8 x 3.5"/2.5" SATA / SAS hot-swap bays (SAS support requires an add-in controller card)
GPU Support: Up to 2 x dual-slot FHFL PCIe Gen5 GPUs
PCIe Expansion Slots: 2 x FHFL PCIe Gen5 x16; 2 x FHHL PCIe Gen5 x16; 4 x LP PCIe Gen5 x8
OCP Networking: 2 x OCP NIC 3.0 slots (PCIe Gen5 x16)
LAN Ports: 2 x 1Gb/s RJ45 LAN ports (Intel® I350-AM2); 1 x Dedicated Management LAN
Power Supply: 1+1 Redundant 2700W 80 PLUS Titanium Power Supplies
System Management: ASPEED® AST2600 BMC with GIGABYTE Management Console
