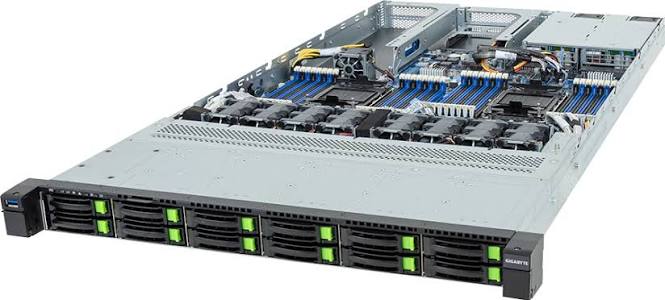

Gigabyte R184 Series R184-SF1-AAJ1 1U Rackmount Dual Intel Xeon 6 Support Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte R184-SF1-AAJ1 R184 series 1U rackmount server system featuring a dual Socket LGA 4710 platform for Intel Xeon 6 6700 and 6500 series processors up to 350W TDP per CPU, 32 DDR5 DIMM slots, dual-slot PCIe Gen5 GPU support, and multiple PCIe Gen5 expansion slots. Storage includes 12 front 2.5-inch hot-swap Gen5 NVMe, SATA, and SAS-4 bays plus an internal M.2 PCIe Gen5 x4 slot, with 1GbE management LAN, USB connectivity, Mini-DP, dual 2000W 80 PLUS Titanium redundant power supplies, and eight high-performance cooling fans.
Specifications
Model Number: R184-SF1-AAJ1
Brand: Gigabyte
Alt Part Number(s): R184-SF1-AAJ1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: R184-SF1-AAJ1
Form Factor: 1U Rackmount; 438 mm x 43.5 mm x 815 mm
Motherboard: MSF4-GP0
Processor: Dual Socket LGA 4710 (Socket E2); Intel Xeon 6 6700/6500 series; Up to 350W TDP per CPU
Memory: 32 x DDR5 DIMM slots; 8-channel per CPU; RDIMM up to 6400 MT/s (1DPC) / 5200 MT/s (2DPC); MRDIMM up to 8000 MT/s
GPU Support: 1 x Dual-slot PCIe Gen5 GPU
Expansion Slots: 1 x FHFL PCIe Gen5 x16 (GPU slot); 1 x FHFL PCIe Gen5 x16; 1 x FHHL PCIe Gen5 x16; 1 x OCP 3.0 PCIe Gen5 x16 mezzanine slot (NCSI support)
Storage Bays: Front: 12 x 2.5" hot-swap Gen5 NVMe/SATA/SAS-4 bays; Internal: 1 x M.2 slot (PCIe Gen5 x4, 2280/22110)
Networking & I/O: Management: 1 x 1GbE dedicated Management LAN (ASPEED AST2600); Front: 1 x USB 3.2 Gen1; Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP
Power Supply: Dual 2000W 80 PLUS Titanium redundant power supplies
System Cooling: 8 x 40x40x56 mm cooling fans; 1 x 40x40x28 mm cooling fan
Security & Management: GIGABYTE Management Console; Optional TPM 2.0 header; RoT connector support
