- Overview

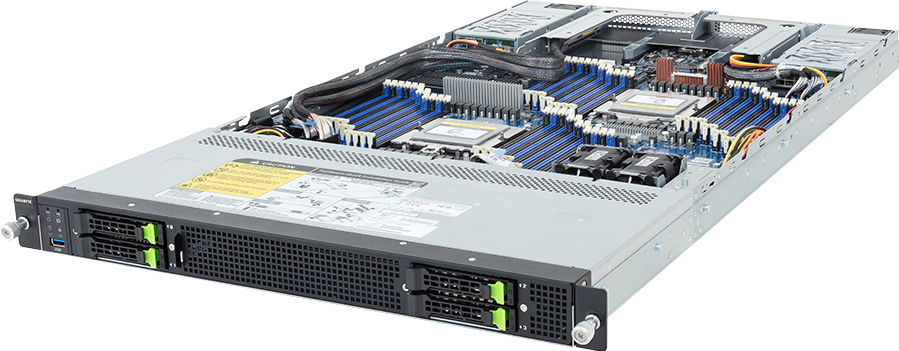

Gigabyte R183-ZK0-ACL1 R183 series is a 1U rackmount server system with dual LGA 6096 Socket SP5 supporting AMD EPYC 9005 and 9004 processors, 48 DDR5 RDIMM slots, 12-channel memory per CPU, and speeds up to 5200 MT/s. It features four 2.5-inch hot-swap PCIe Gen5 NVMe, SATA, and SAS-4 bays, PCIe Gen5 expansion, dual 1GbE networking, ASPEED AST2600 BMC management, dual 1+1 redundant 2700W 80 PLUS Titanium power supplies, and eight system cooling fans.
Specifications
Model Number: R183-ZK0-ACL1
Brand: Gigabyte
Alt Part Number(s): R183-ZK0-ACL1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: R183-ZK0-ACL1
Form Factor: 1U Rackmount (438×43.5×815 mm)
Motherboard: Gigabyte MZK3-LM0
CPU Sockets: Dual LGA 6096 (Socket SP5), supporting AMD EPYC 9005 & 9004 series processors
DIMM Slots: 24 per CPU; 48 total
Memory Type: DDR5 RDIMM
Memory Channels: 12-channel per CPU
Memory Speed: Up to 5200 MT/s (EPYC 9005); 4800 MT/s (EPYC 9004)
Front Bays: 4 x 2.5" hot-swap drive bays; PCIe Gen5 NVMe; SATA 6Gb/s; SAS-4 24Gb/s
Internal M.2: 1 x M.2 (2280/22110); PCIe Gen3 x4
PCIe Slots: 2 x FHHL PCIe Gen5 x16; 2 x OCP NIC 3.0 PCIe Gen5 x16 with NCSI
Networking: 2 x 1GbE LAN (Intel I350-AM2); 1 x Dedicated 10/100/1000 Mbps Management LAN
Front Ports: 1 x USB 3.2 Gen1 Type-A; Power / ID / NMI / Reset buttons; System LED indicators
Rear Ports: 2 x USB 3.2 Gen1 Type-A; 1 x Mini-DP (ASPEED AST2600); 2 x RJ45 LAN; 1 x MLAN
Management: ASPEED AST2600 BMC; Gigabyte Management Console; HTML5 KVM; sensors; firewall; LDAP/AD/RADIUS support
Power Supply: Dual 1+1 redundant 2700W 80 PLUS Titanium
Cooling: 6 x 40×40×56 mm; 2 x 40×40×28 mm system cooling fan modules
