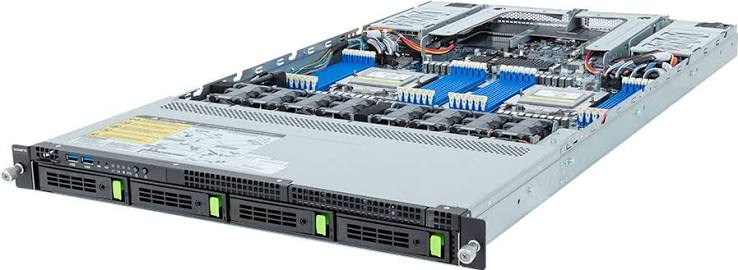

Gigabyte R183-Z93-ACV1 1U Rackmount Dual Socket SP5 DDR5 RDIMM Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte R183-Z93-ACV1 server system in the 1U rackmount series features dual Socket SP5 support for AMD EPYC 9005 and 9004 processors, 24 DDR5 RDIMM slots with up to 6400 MT/s memory, four hot-swap hybrid drive bays, three M.2 slots, two PCIe Gen5 x16 slots, and dual OCP NIC 3.0 Gen5 x16 slots. It also includes dual 1GbE networking, a dedicated management LAN, ASPEED AST2600 BMC with HTML5 KVM, dual redundant 1600W 80 PLUS Platinum or Titanium power supplies, and eight high-performance cooling fans.
Specifications
Model Number: R183-Z93-ACV1
Brand: Gigabyte
Alt Part Number(s): R183-Z93-ACV1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: R183-Z93-ACV1
Form Factor: 1U Rackmount (438 x 43.5 x 815 mm)
Motherboard: GIGABYTE MZ93-FS1
CPUs: Dual Socket SP5 (LGA 6096)
Architecture: AMD EPYC™ 9005 and 9004 series processors; cTDP up to 300W / 400W depending on configuration
Memory Slots: 24 x DIMM slots; 12 channels per CPU
Memory Type: DDR5 RDIMM
Memory Speeds: Up to 6400 MT/s (EPYC 9005); up to 4800 MT/s (EPYC 9004)
Front Drive Bays: 4 x 3.5"/2.5" hot-swap hybrid bays; PCIe Gen5 NVMe, SATA 6Gb/s, or SAS-4; SAS requires dedicated add-in card
Internal M.2: 3 x M.2 slots; 2 x PCIe Gen3 x4; 1 x PCIe Gen3 x2; supports 2280/22110 form factors
PCIe Slots: 2 x FHHL PCIe Gen5 x16 expansion slots
OCP Slots: 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
LOM Networking: 2 x 1Gb/s RJ45 ports; Intel® I350-AM2 controller
Management Port: 1 x 10/100/1000 dedicated management LAN port
BMC / Video: Integrated ASPEED® AST2600 BMC with GIGABYTE Management Console HTML5 KVM; 1 x Mini-DP port
Power Supply: Dual redundant 1600W 80 PLUS Platinum / Titanium PSUs
System Cooling: 8 x 40 x 40 x 56 mm high-performance fans
