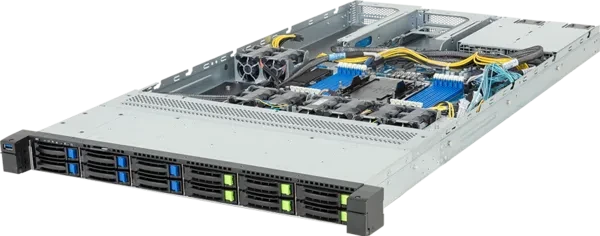

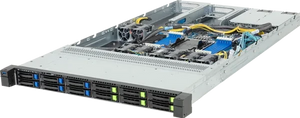

Gigabyte R164-AG2-AAJ1 1U Intel Xeon 6900-Series 12x DDR5 6x Gen5 NVMe Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte R164-AG2-AAJ1 is a high-performance 1U server designed for demanding workloads. It supports a single Intel Xeon 6900-Series processor with up to 500W TDP, 12 x DDR5 DIMM slots for up to 6400 MT/s memory speeds, and 12-channel memory architecture. Featuring 6x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays, redundant 2000W 80 PLUS Titanium power supplies, and a variety of PCIe Gen5 x16 slots, it ensures optimal performance with integrated ASPEED AST2600 video and robust security options like TPM 2.0.
Specifications
Model Number: R164-AG2-AAJ1
Brand: Gigabyte
Alt Part Number(s): R164-AG2-AAJ1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R164-AG2-AAJ1
Form Factor: 1U
Dimensions: 438 x 43.5 x 815 mm
Motherboard: MAG4-GU0
Processor: Intel® Xeon® 6900-Series (Single Processor, LGA 7529)
TDP: Up to 500W
Socket: 1 x LGA 7529 (Socket BR)
Chipset: System on Chip (SoC)
Memory: 12 x DIMM slots; DDR5 RDIMM/MRDIMM; 12-channel memory per processor; RDIMM up to 6400 MT/s; MRDIMM up to 8800 MT/s
LAN: 1 x 10/100/1000 Mbps Management LAN (Rear)
Video: Integrated ASPEED® AST2600; 1 x Mini-DP
Storage: 6 x 2.5" Gen5 NVMe/SATA/SAS-4; 6 x 2.5" SATA/SAS-4 (Front hot-swap); 1 x M.2 (2280/22110), PCIe Gen5 x2 (Internal); 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA (Internal)
PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16) for GPUs; 1 x FHFL x16 (Gen5 x16); 1 x FHHL x16 (Gen5 x16); 1 x OCP NIC 3.0 (Gen5 x16)
Front I/O: 1 x USB 3.2 Gen1 port (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x Reset button; 2 x LAN activity LEDs (disabled); 1 x Storage activity LED; 1 x System status LED
Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 1 x MLAN port; 1 x ID LED
Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM012; 1 x PRoT connector (only enabled on RoT SKU)
Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input: 100-127V~ / 12A, 50/60Hz; 200-240V~ / 10A, 50/60Hz
DC Input: 240Vdc / 10A (only for China)
DC Output: Max 1000W/100-127V~: +12.2V/82A, +12Vsb/3A; Max 1800W/200-207V~: +12.2V/147.5A, +12Vsb/3A; Max 2000W/220-240V~ or 240Vdc Input: +12.2V/164A, +12Vsb/3A
System Fans: 8 x 40x40x56mm
Operating Temperature: 10°C to 30°C
Operating Humidity: 8% to 80% (non-condensing)
Non-Operating Temperature: -40°C to 60°C
Non-Operating Humidity: 20% to 95% (non-condensing)
