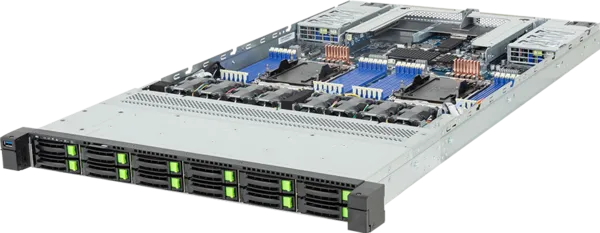

"Image may differ from actual product"
Roll over image to zoom in Click on image to zoom

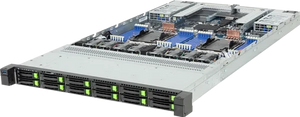

Gigabyte R164-AG0-AAV1 1U Intel Xeon 6900-Series Single Processor 12x DDR5 NVMe Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte R164-AG0-AAV1 is a 1U server optimized for Intel® Xeon® 6900-Series processors, supporting up to 500W TDP with 12 DIMM slots for DDR5 RDIMM/MRDIMM memory at speeds up to 8800 MT/s. It features 4x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays, dual 1600W 80 PLUS Titanium redundant power supplies, and PCIe Gen5 x16 slots, along with integrated ASPEED AST2600 video and flexible networking options, including an OCP NIC 3.0 slot.
Specifications
Model Number: R164-AG0-AAV1
Brand: Gigabyte
Alt Part Number(s): R164-AG0-AAV1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R164-AG0-AAV1
Form Factor: 1U
Dimensions: 438 x 43.5 x 815
Motherboard: MAG4-GU0
CPU: Intel® Xeon® 6 Processors
Processor Series: Intel® Xeon® 6900-Series Processors
Processor Configuration: Single processor, TDP up to 500W
Socket: 1 x LGA 7529
Socket Type: Socket BR
Chipset: System on Chip
Memory Slots: 12 x DIMM slots
Memory Type: DDR5 RDIMM/MRDIMM
Memory Channels: 12-Channel memory per processor
Max Memory Speed (RDIMM): Up to 6400 MT/s
Max Memory Speed (MRDIMM): Up to 8800 MT/s
MRDIMM Support: Supported only on select Intel® Xeon® 6 processors with P-cores
LAN (Rear): 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED® AST2600
Video Output: 1 x Mini-DP
Storage (Front hot-swap): 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
Internal M.2: 1 x M.2 (2280/22110), PCIe Gen5 x2
Internal M.2 (Shared): 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA
PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16), for GPUs
Additional PCIe Slots: 1 x FHFL x16 (Gen5 x16); 1 x FHHL x16 (Gen5 x16)
OCP NIC 3.0 Slot: 1 x OCP NIC 3.0 (Gen5 x16), Supports NCSI function
Front I/O: 2 x USB 3.2 Gen1 ports (Type-A)
Front I/O Controls: 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button
Front I/O Indicators: 2 x LAN activity LEDs (disabled); 1 x Storage activity LED; 1 x System status LED
Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 1 x MLAN port; 1 x ID LED
Security Modules: 1 x TPM header with SPI interface (Optional TPM2.0 kit: CTM012)
Power Supply: Dual 1600W 80 PLUS Titanium redundant power supply
AC Input: 100-127V~/ 12A, 50-60Hz; 200-240V~/ 10A, 50-60Hz
DC Input (China): 240Vdc/ 8A
DC Output: Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A
DC Output (Max): Max 1600W/ 200-240V~ or 240Vdc Input +12.2V/ 132A +12.2Vsb/ 3A
System Fans: 8 x 40x40x56mm
Operating Temperature: 10°C to 30°C
Operating Humidity: 8% to 80% (non-condensing)
Non-operating Temperature: -40°C to 60°C
Non-operating Humidity: 20% to 95% (non-condensing)
