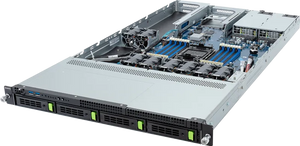

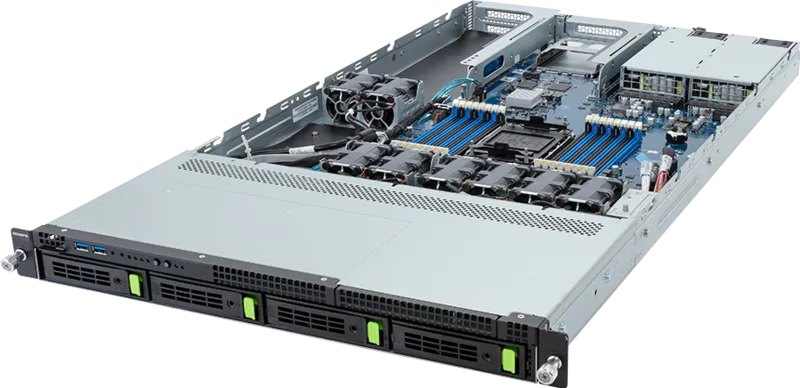

Gigabyte R163-SG0-AAC1 1U Intel Xeon Scalable DDR5 1300W Rackmount Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Gigabyte R163-SG0-AAC1 is a 1U server that supports 5th Gen Intel Xeon Scalable processors with a single processor socket (LGA 4677) and offers up to 350W TDP. It features 16 DIMM slots with DDR5 RDIMM support, 8-channel memory, and 4 hot-swappable 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 bays, along with 1 x M.2 PCIe Gen3 x4 slot. The system is powered by dual 1300W 80 PLUS Platinum redundant PSUs and includes various expansion options, including PCIe slots and SAS support.
Specifications
Model Number: R163-SG0-AAC1
Brand: Gigabyte
Alt Part Number(s): R163-SG0-AAC1
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R163-SG0-AAC1
Form Factor: 1U
Dimensions: 438 x 43.5 x 815 mm
Motherboard: MSG3-GU0
Processors: 5th Gen Intel® Xeon® Scalable Processors; 4th Gen Intel® Xeon® Scalable Processors; Intel® Xeon® CPU Max Series; Single processor, TDP up to 350W
Socket: 1 x LGA 4677
Chipset: Intel® C741
Memory: 16 x DIMM slots; Support DDR5 RDIMM; 8-Channel memory per processor; Up to 5600 MT/s (1DPC) for 5th Gen Intel® Xeon®
LAN: 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED® AST2600; 1 x Mini-DP
Storage: 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays; 1 x M.2 (2280/22110), PCIe Gen3 x4, from PCH
SAS: Requires SAS add-in cards
RAID: Intel® SATA RAID 0/1/10/5; Onboard VROC key header
PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16), for GPUs; 1 x FHHL x16 (Gen5 x16); 1 x OCP NIC 3.0 (Gen5 x16)
Front I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Power button with LED; 1 x ID button with LED
Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 1 x MLAN port
Power Supply: 1+1 1300W 80 PLUS Platinum redundant power supplies; AC Input: 100-240V~/ 12-7A
