Description
Overview

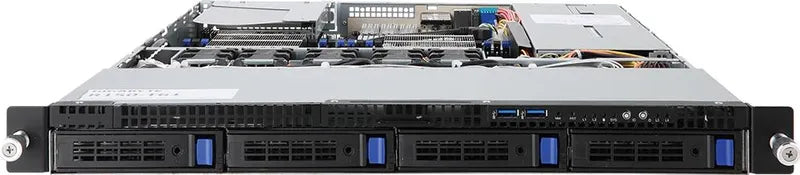

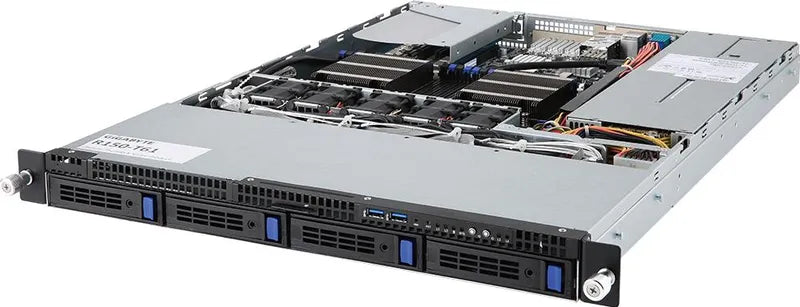

Gigabyte R150-T63 7000 AMD Socket AM5 Ryzen Server
Specifications
Model Number: R150-T63
Brand: Gigabyte
Alt Part Number(s): R150-T63
Product Type: Server
Technical Description
Brand: Gigabyte
Model: R150-T63
Dimensions: 1U
Motherboard: MT60-SC6
CPU: Cavium ThunderX family
Processors: 2 x ThunderX_CP processors
Architecture: 64bit ARMv8 architecture
Cores: 32 cores per processor, 1.8GHz
Package: BGA 2601, 28nm technology
Chipset: -
Memory: 16 x DIMM slots
Memory Type: DDR4 memory supported only
Architecture: Quad channel memory architecture
Capacity: Up to total 512GB memory capacity
Speed: 1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
Speed (1DPC): 2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
Note: Due to processor specification, at least 4 x DIMM modules must be installed for this model
LAN: 3 x 40GbE QSFP+ LAN ports
LAN: 4 x 10Gb/s SFP+ LAN ports
Management LAN: 1 x 10/100/1000 management LAN port
Video: Integrated in Aspeed AST2400
Graphics: 2D Video Graphic Adapter with PCIe bus interface
Resolution: 1920x1200 at 60Hz 32bpp
Audio: -
Storage: 4 x 3.5" hot-swappable HDD bays
Additional Storage: 2.5" HDD/SSD supported
Note: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS: -
RAID: Depends on OS RAID
Peripheral Drives: -
Expansion Slots: 1 x Full-height half-length slot with PCIe x16 (Gen3 x8 bus) slot
Internal I/O: 1 x 24-pin main power connector
Power Connectors: 2 x 8-pin power connectors
CPU Fan Header: 2 x CPU fan header
System Fan Headers: 5 x System fan headers
USB Header: 1 x USB 3.0 header
COM Header: 1 x COM2 header
SGPIO Header: 1 x SATA SGPIO header
Front Panel Headers: 1 x Front panel headers
Backplane Header: 1 x back plane board header
PMBUS Header: 1 x PMBUS header
BMC JTAG Header: 1 x BMC JTAG header
PLD Header: 1 x JTAG PLD header
BMC Reset: 1 x BMC reset header
Clear CMOS: 1 x Clear CMOS jumper
BIOS Recovery: 1 x BIOS recovery jumper
IPMB: 1 x IPMB connector
Front I/O: 2 x USB 3.0
Buttons/LEDs: 1 x Power button, 1 x Power LED, 1 x ID button, 1 x Reset button, 1 x HDD activity LED
LAN LEDs: 2 x LAN activity LEDs (Dedicated for 10Gb/s SFP+ LAN ports)

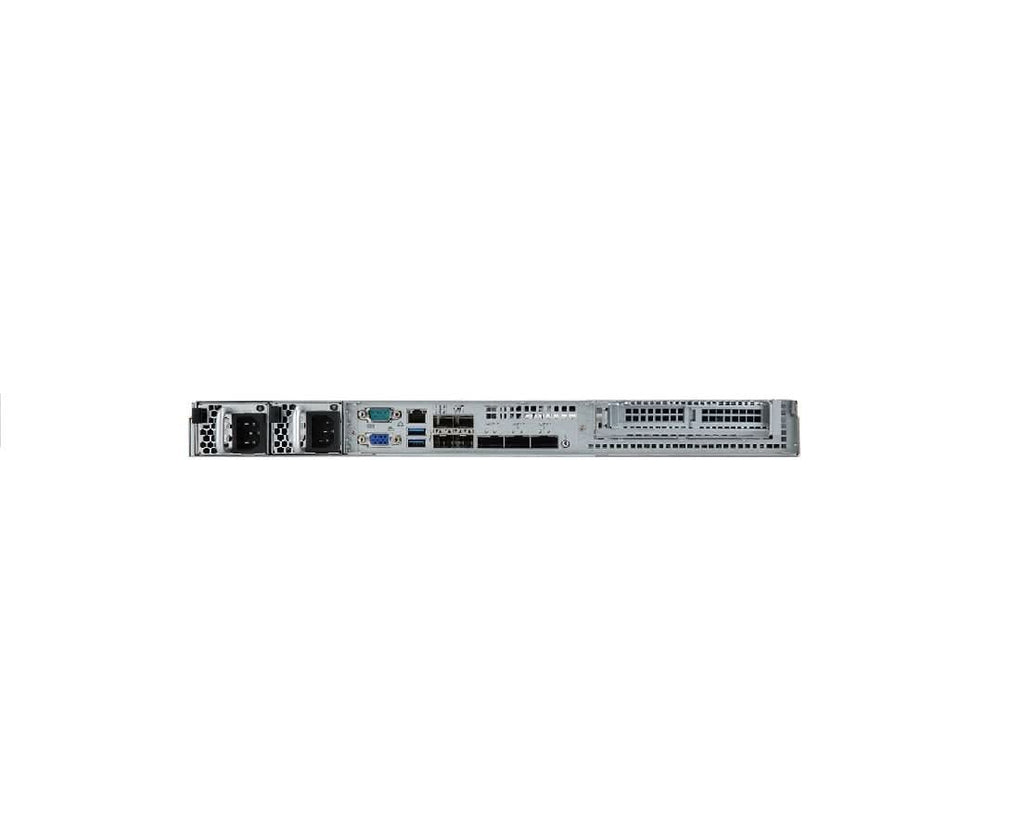

Rear I/O: 1 x ID button with LED, 2 x USB 3.0, 1 x VGA, 1 x COM1, 3 x QSFP+, 4 x SFP+, 1 x RJ45
Backplane I/O: Speed and bandwidth: SATA 6Gb/s
TPM: -
Power Supply: 2 x 650W redundant PSUs
Efficiency: 80 PLUS Platinum
AC Input: 100-240V, 50-60Hz, 10/5A
DC Output: 650W
System Management: Aspeed AST2400 management controller
IPMI Interface: Avocent MergePoint IPMI 2.0 web interface
Features: Network settings, Network security settings, Users control, Services settings, IPMI settings, Sessions control, LDAP settings, Power control, Voltages, fans and temperatures monitoring, System event log, Events management (platform events, trap settings, email settings), Serial Over LAN, vKVM and Media (launch, configuration)
OS Supported (Certified): Ubuntu 16.04.1 64bit, SLES12 SP2
OS Supported (Compatible): openSUSE Tumbleweed, openSUSE Leap 42.1+, RHEL 7.3 64bit, CentOS 7.3 64bit
System Fans: 5 x 40x40x56mm (23000rpm)
Operating Temperature: 10°C to 35°C
Operating Humidity: 8%-80% (non-condensing)
Non-operating Temperature: -40°C to 60°C
Non-operating Humidity: 20%-95% (non-condensing)
