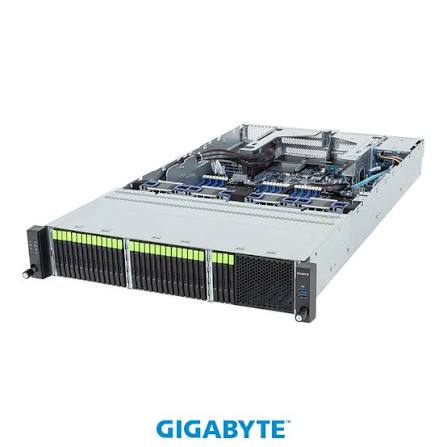

Gigabyte R Series R284-S91-AAJ1 Dual Intel Xeon 6 32x DDR5 2U Rackmount Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte R284-S91-AAJ1 2U Rackmount Server System features dual Intel Xeon 6 6700-series or 6500-series processors with 2 x LGA 4710 sockets, up to 350W TDP per CPU, 32 DDR5 DIMM slots, 32 E3.S Gen5 NVMe hot-swappable bays, and PCIe Gen5 expansion. It includes dual 2000W 80 PLUS Titanium redundant PSUs, 2 x 2.5-inch SATA/SAS-4 hot-swappable rear bays, dual M.2 Gen5 slots, OCP 3.0 Gen5 x16, 1GbE networking, AST2600 BMC management, and four 16,000 RPM heavy-duty fans.
Specifications
Model Number: R284-S91-AAJ1
Brand: Gigabyte
Alt Part Number(s): R284-S91-AAJ1
Product Type: Server System
Technical Description
Brand: Gigabyte
Model Number: R284-S91-AAJ1
Chassis: 2U Rackmount (W 438 x H 87.5 x D 815 mm)
Motherboard: GIGABYTE MS94-FS0
Weight: 21.2 kg net / 29.4 kg gross
CPU Support: Dual Intel Xeon 6 Processors (6700-series / 6500-series)
Socket: 2 x LGA 4710 (Socket E2)
Thermal Design Power (TDP): Up to 350W per CPU
Memory Slots: 32 x DDR5 DIMM slots (8-channel per CPU)
Type Support: RDIMM (up to 6400 MT/s 1DPC) / MRDIMM (up to 8000 MT/s)
Front Bays: 32 x E3.S Gen5 NVMe hot-swappable drive bays
Rear Bays: 2 x 2.5" SATA/SAS-4 hot-swappable drive bays
Internal M.2: 2 x M.2 slots (PCIe Gen5 x4, supports 2280/22110 cards)
PCIe Slot: 1 x FHHL PCIe Gen5 x16 slot
OCP Mezzanine: 1 x OCP 3.0 PCIe Gen5 x16 slot
LAN: 2 x 1 Gb/s RJ45 ports (Intel I350-AM2)
Management: 1 x Dedicated 10/100/1000 Management LAN port
BMC Controller: ASPEED AST2600
Video Output: Integrated ASPEED AST2600 via 1 x Mini-DP
Front: 2 x USB 3.2 Gen1, Power/Reset/ID buttons, System Status LEDs
Rear: 2 x USB 3.2 Gen1, 1 x Mini-DP, 2 x RJ45 LAN, 1 x MLAN
Power Supply: 1+1 Redundant 2000W 80 PLUS Titanium PSUs
Fans: 4 x 80x80x38mm heavy-duty system fans (16,000 RPM)
