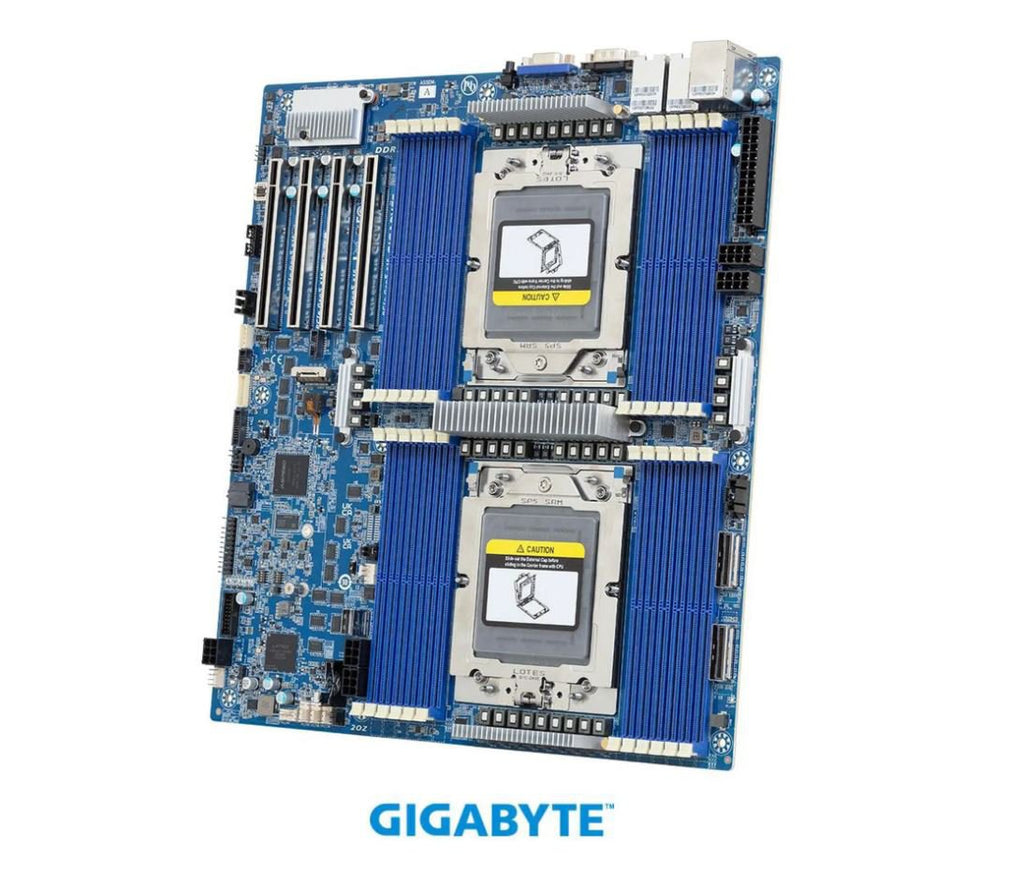

Gigabyte MZ73-LM2 AMD EPYC 9005/9004 Dual Socket SP5 DDR5 E-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte MZ73-LM2 server motherboard features an E-ATX form factor, dual Socket SP5 LGA 6096 support for AMD EPYC 9005 and 9004 series processors with cTDP up to 500W, and 24 DDR5 DIMM slots with 12-channel memory per processor. It supports RDIMM speeds up to 6400 MT/s with EPYC 9005 processors and 4800 MT/s with EPYC 9004 processors, and includes PCIe 5.0 x16 expansion slots, dual 10GbE LAN, an ASPEED AST2600 management controller, Gen5 NVMe and SATA storage connectivity, and a PCIe Gen5 x4 M.2 slot.
Specifications
Model Number: MZ73-LM2
Brand: Gigabyte
Alt Part Number(s): MZ73-LM2
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model Number: MZ73-LM2
Form Factor: E-ATX 304.8 x 335.2 mm
Processor: AMD EPYC 9005 Series Processors; AMD EPYC 9004 Series Processors; Dual processor, cTDP up to 500W
Processor Socket: 2 x LGA 6096; Socket SP5
Chipset: System on Chip
Memory Slots: 24 x DIMM slots
Memory Type: DDR5
Memory Channels: 12-Channel memory per processor
Memory Speed: AMD EPYC 9005: RDIMM up to 6400 MT/s; AMD EPYC 9004: RDIMM up to 4800 MT/s
LAN: 2 x 10Gb/s LAN, 1 x Broadcom BCM57416; 1 x 10/100/1000 Mbps Management LAN; NCSI function support
Graphics Controller: Integrated ASPEED AST2600
Video Port: 1 x VGA port
Storage Interface: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA from CPU_1; 1 x SlimSAS 4i for 4 x SATA from CPU_0; 1 x M.2 2280/22110, PCIe Gen5 x4 from CPU_0
PCI Express Slots: Slot_4: PCIe x16 Gen5 x16 from CPU_0; Slot_3: PCIe x16 Gen5 x16 from CPU_0; Slot_2: PCIe x16 Gen5 x16 from CPU_1; Slot_1: PCIe x16 Gen5 x16 from CPU_1; 2 x MCIO 8i, PCIe Gen5 x8 or SATA from CPU_1
Internal I/O: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 3 x 6-pin ATX 12V power connectors; 2 x 4-pin CPU fan headers; 2 x 3-pin CPU fan headers; 4 x system fan headers; 1 x USB 3.2 Gen1 x2 header; 1 x M.2 slot; 2 x MCIO 8i connectors; 1 x SlimSAS 4i connector; 1 x front panel header; 1 x backplane board header; 1 x PMBus connector; 1 x IPMB connector; 1 x TPM header
Rear I/O: 2 x USB 3.2 Gen1 Type-A ports; 1 x VGA port; 1 x COM port; 2 x RJ45 ports; 1 x MLAN port; 1 x ID button with LED
Security Modules: 1 x TPM header with SPI interface
Board Management: ASPEED AST2600 Baseboard Management Controller; GIGABYTE Management Console web interface; Dashboard; HTML5 KVM; Sensor Monitor for voltage, RPM, temperature, CPU status, and more; Sensor Reading History Data; FRU Information; SEL Log with Linear Storage / Circular Storage Policy; Hardware Inventory; Fan Profile; System Firewall; Power Consumption; Power Control; Advanced power capping; LDAP / AD / RADIUS Support; Backup & Restore Configuration; Remote BIOS/BMC/CPLD Update; Event Log Filter; User Management; Media Redirection Settings; PAM Order Settings; SSL Settings; SMTP Settings
PSU Connectors: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 3 x 6-pin ATX 12V power connectors
Operating Temperature: 10°C to 40°C
Operating Humidity: 8% to 80%, non-condensing
Non-Operating Temperature: -40°C to 60°C
Non-Operating Humidity: 20% to 95%, non-condensing
Retail Packaging Content: 1 x MZ73-LM2; 1 x I/O shield; 1 x Quick start guide; 1 x SlimSAS 4i to 4 x SATA cable, 600 mm
Single Box Dimensions: 409 x 355 x 78 mm
