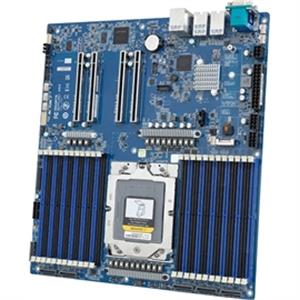

Gigabyte MZ33-AR1 AMD EPYC 9005/9004 SP5 DDR5 24-DIMM E-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte MZ33-AR1 server motherboard features an E-ATX form factor, single Socket SP5 LGA 6096 support for AMD EPYC 9005 and 9004 series processors with cTDP up to 500W, and 24 DDR5 DIMM slots with 12-channel memory architecture. It supports PCIe 5.0 x16 expansion, dual 10GbE LAN, an ASPEED AST2600 management controller, PCIe Gen5 NVMe and SATA storage connectivity, a PCIe Gen4 x4 M.2 slot, VGA output, USB 3.2 Gen1 connectivity, and comprehensive remote server management with a 3-year warranty.
Specifications
Model Number: MZ33-AR1
Brand: Gigabyte
Alt Part Number(s): MZ33-AR1
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model Number: MZ33-AR1
Form Factor (WxD, mm): E-ATX; 304.8 x 330.2
CPU: AMD EPYC 9005 Series Processors; AMD EPYC 9004 Series Processors; Single processor, cTDP up to 500W
Socket: 1 x LGA 6096; Socket SP5
Chipset: System on Chip
Memory: 24 x DIMM slots; DDR5 memory supported; 12-Channel memory per processor; AMD EPYC 9005: RDIMM up to 5200 MT/s (1DPC); RDIMM up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC); AMD EPYC 9004: RDIMM up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN: 2 x 10Gb/s LAN (1 x Broadcom BCM57416); NCSI function support; 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED AST2600; 1 x VGA port
Audio: N/A
Storage Interface: MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA; 3 x MCIO 8i for 6 x Gen5 NVMe; 1 x MCIO 8i for 2 x Gen4 NVMe; M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4
RAID: N/A
PCIe Expansion Slots: Slot_7: PCIe x16 (Gen5 x16); Slot_6: PCIe x16 (Gen5 x16); Slot_4: PCIe x16 (Gen5 x16); Slot_3: PCIe x16 (Gen5 x16); 2 x MCIO 8i (PCIe Gen5 x8 or SATA) [2]; 3 x MCIO 8i (PCIe Gen5 x8) [1]; 1 x MCIO 8i (PCIe Gen4 x8). Note 1: Refer to optional parts for qualified cables to ensure Gen5 signal quality. Note 2: Connector supports SATA by default; to enable the other option, refer to the manual and adjust BIOS settings.
Internal I/O: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x 6-pin ATX 12V power connector; 1 x CPU fan header; 5 x system fan headers; 1 x USB 3.2 Gen1 x2 header; 1 x USB 2.0 header; 1 x M.2 slot; 6 x MCIO 8i connectors; 1 x front panel header; 1 x backplane board header; 1 x PMBus connector; 1 x IPMB connector; 1 x TPM header
Rear I/O: 2 x USB 3.2 Gen1 Type-A ports; 1 x VGA port; 1 x COM port; 2 x RJ45 ports; 1 x MLAN port; 1 x ID button with LED
Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM012
OS Compatibility: Refer to OS compatibility table on support page
Board Management: ASPEED AST2600 Baseboard Management Controller; GIGABYTE Management Console web interface; Dashboard; HTML5 KVM; Sensor Monitor (voltage, RPM, temperature, CPU status, etc.); Sensor Reading History Data; FRU Information; SEL Log with Linear Storage / Circular Storage Policy; Hardware Inventory; Fan Profile; System Firewall; Power Consumption; Power Control; Advanced power capping; LDAP / AD / RADIUS Support; Backup and Restore Configuration; Remote BIOS/BMC/CPLD Update; Event Log Filter; User Management; Media Redirection Settings; PAM Order Settings; SSL Settings; SMTP Settings
PSU Connectors: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x 6-pin ATX 12V power connector
Operating Temperature: 10°C to 40°C
Operating Humidity: 8% to 80%, non-condensing
Non-Operating Temperature: -40°C to 60°C
Non-Operating Humidity: 20% to 95%, non-condensing
Item Dimensions (L x W x H): 15 x 13 x 4 in
Weight: 6 lbs
Warranty Information: 3 years
