Description
Overview

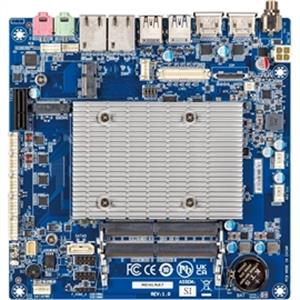

Thin Mini-ITX Embedded Motherboard with Intel® Celeron® J6412 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 9 x USB
Specifications
Model Number: ITXL-6412A
Brand: Gigabyte
Alt Part Number(s): ITXL-6412A
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model: ITXL-6412A
Form Factor: Thin Mini-ITX (170 × 170 mm)
Processor: Intel® Celeron® J6412 (10nm, 4 cores / 4 threads, up to 2.60 GHz, 10W TDP)
Socket: FCBGA1493 (soldered)
Memory: 2 × DDR4 SO-DIMM slots, up to 32 GB, dual-channel, 3200 MHz
Graphics: Intel® UHD Graphics
2 × HDMI 2.0 (4096 × 2160 @ 60Hz)
1 × eDP or LVDS (one active at a time)
Supports 3 independent displays
Ethernet: 2 × Gigabit LAN ports
Audio: Realtek ALC897, 2 × audio jacks (Line out, Mic in)
Storage: 1 × SATA 6Gb/s port
Expansion Slots:
1 × PCIe x1 (Gen3)
1 × M.2 2280 M-Key (PCIe x2 / SATA)
1 × M.2 2230 E-Key (PCIe x1 / USB 2.0)
USB Ports:
Rear I/O: 3 × USB 3.2 Gen 1, 1 × USB 2.0
Internal: 5 × USB 2.0 headers
Power: DC Jack (12V / 19–24V DC input)
Operating Temperature: 0°C to 60°C
OS Support: Windows 10 (64-bit)
Boost your enterprise performance with the Gigabyte MB ITXL-6412A Celeron J6412 Thin Mini-ITX—ORDER TODAY!
