- Overview
Overview

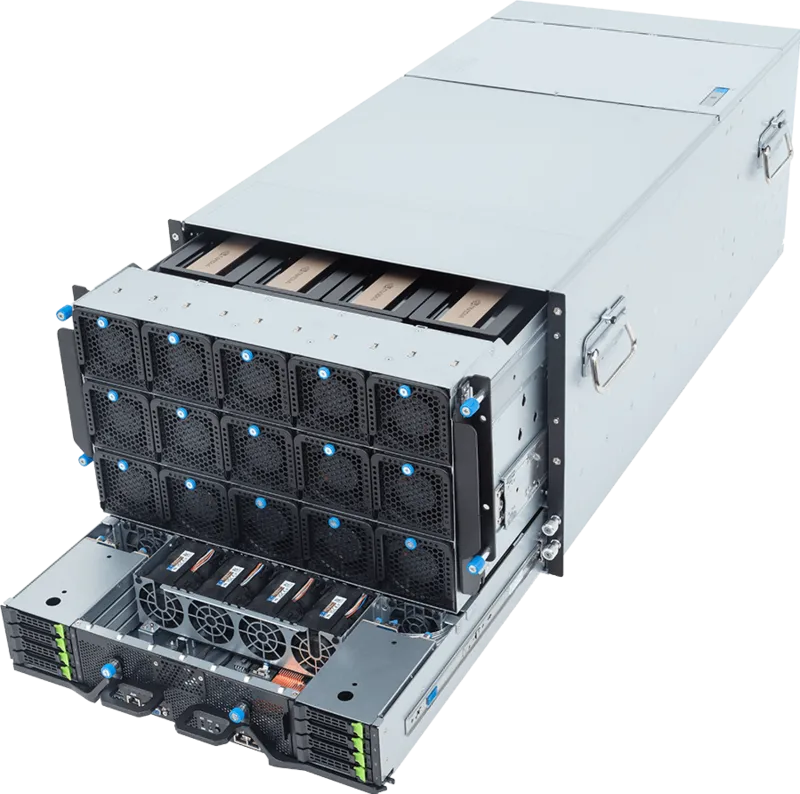

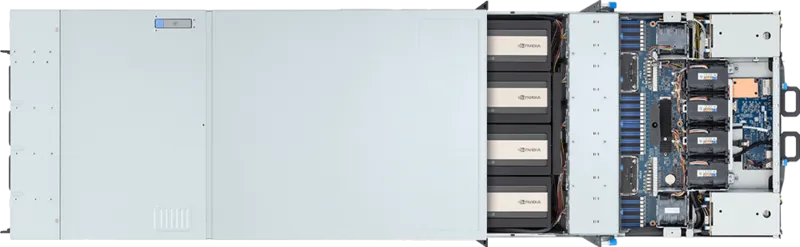

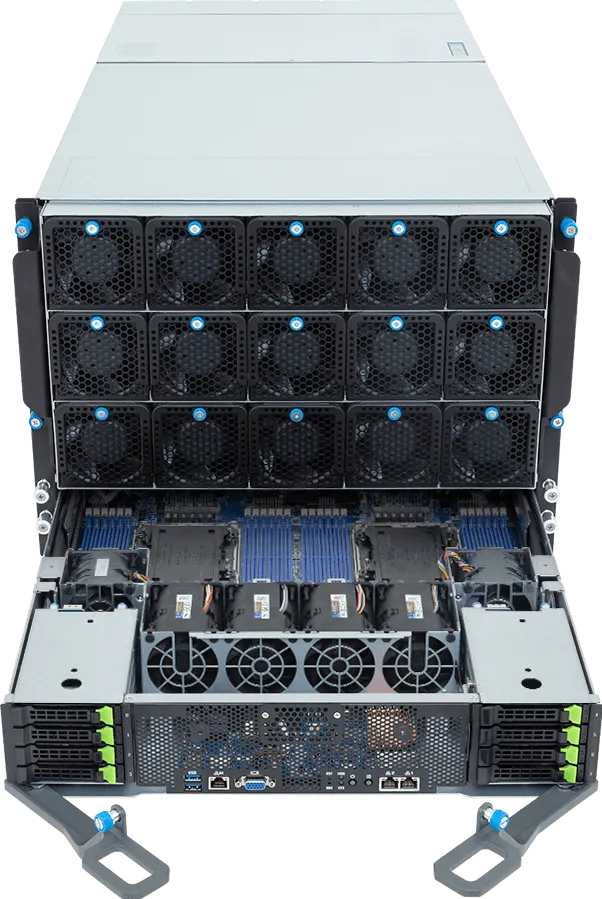

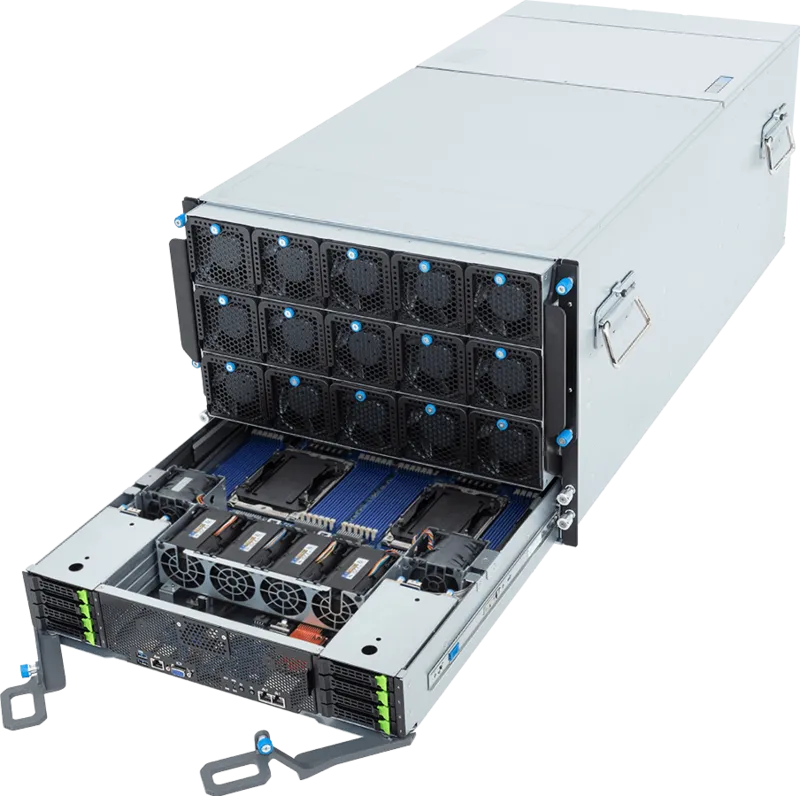

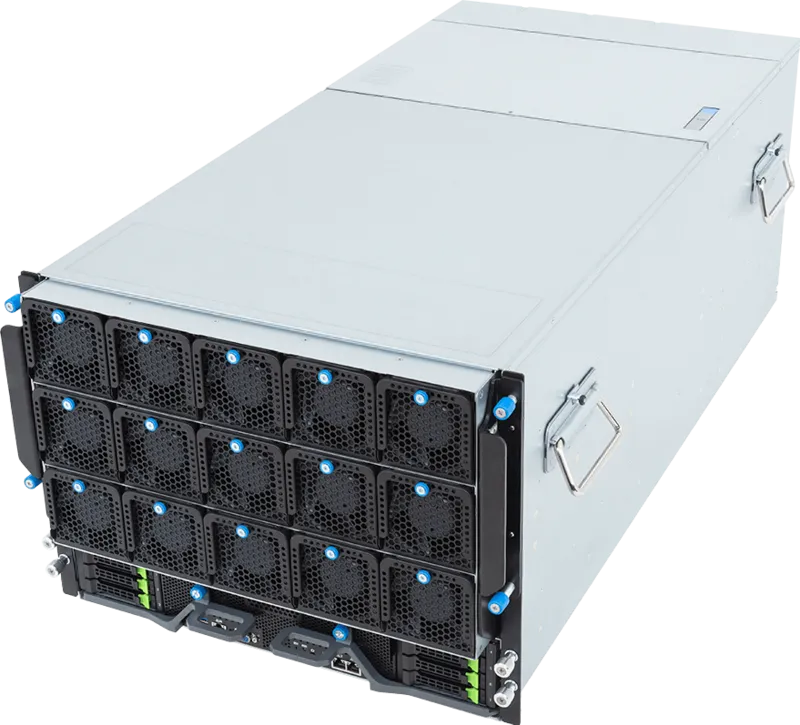

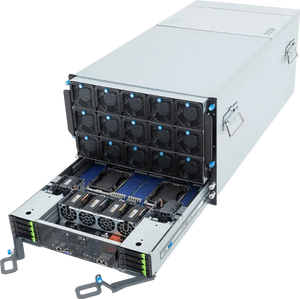

Gigabyte G894-AD3-AAX7 HPC/AI Intel Xeon 6 Processors DP NVIDIA HGX B300 8U Server
Specifications
Model Number: G894-AD3-AAX7
Brand: Gigabyte
Alt Part Number(s): G894-AD3-AAX7
Product Type: Server
Technical Description
Brand: Gigabyte
Model: G894-AD3-AAX7
Form Factor: 8U, GPU Server
Dimensions: 447 x 351 x 923

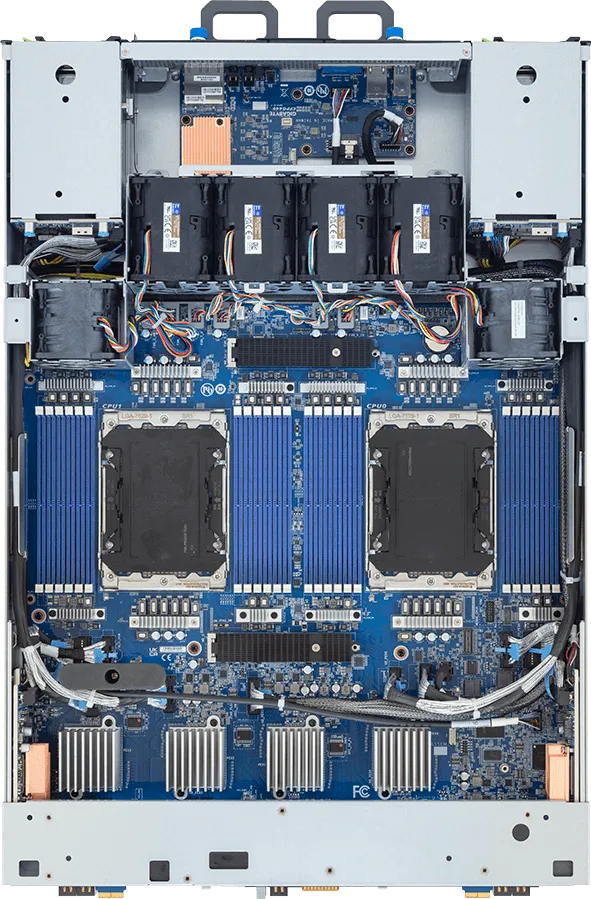

Motherboard: MAB4-PE2
CPU: Intel® Xeon® 6 Processors; Intel® Xeon® 6900-Series Processors; Dual processor, TDP up to 500W; [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket: 2 x LGA 7529; Socket BR
Chipset: System on Chip
Memory: 24 x DIMM slots; Support DDR5 RDIMM/MRDIMM [1]; 12-Channel memory per processor; RDIMM: Up to 6400 MT/s; MRDIMM: Up to 8800 MT/s; [1] MRDIMMs supported only with Intel® Xeon® 6 Processors with P-cores.
LAN: Front (I/O board - CFPG440): 2 x 10Gb/s LAN (1 x Intel® X710-AT2) - Support NCSI function; 1 x 10/100/1000 Mbps Management LAN; Rear: 8 x 800 Gb/s OSFP InfiniBand XDR / Dual 400 Gb/s Ethernet via NVIDIA ConnectX®-8 SuperNIC™; Rear (MLAN board - CDB66): 1 x 10/100/1000 Mbps Management LAN; [Note] When both MLAN ports are connected, the front MLAN port becomes default.
Video: Integrated in ASPEED® AST2600; 1 x VGA port
Storage: Front hot-swap: 8 x 2.5" Gen5 NVMe (NVMe from PEX89072); Internal M.2: 1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1; 1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1

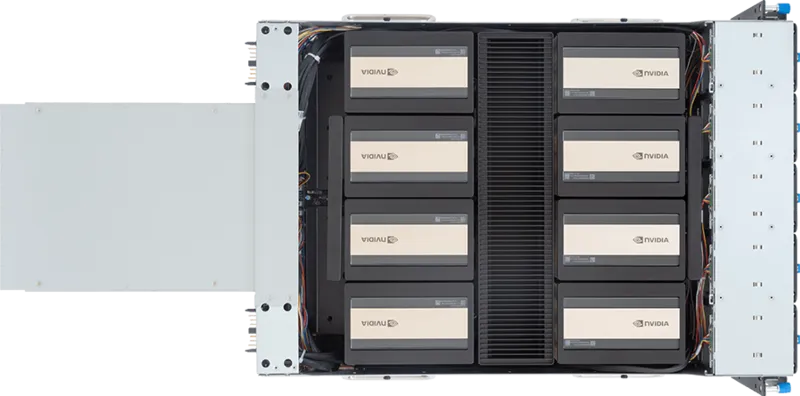

Modular GPU: NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe Expansion Slots: PCIe Bridge Board - CPBG045 x 2: 4 x FHHL x16 (Gen5 x16), from PEX89072

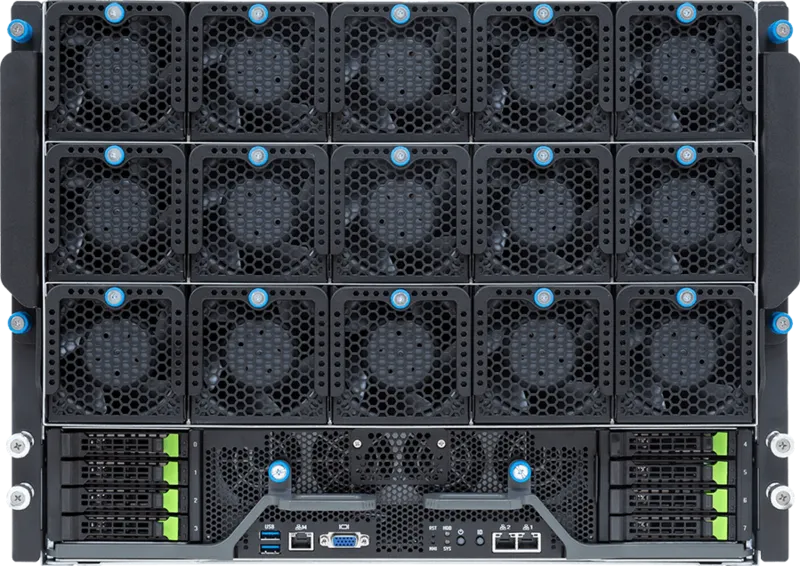

Front I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x VGA port; 2 x RJ45 ports; 1 x MLAN port (default); 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button; 1 x Storage activity LED; 1 x System status LED

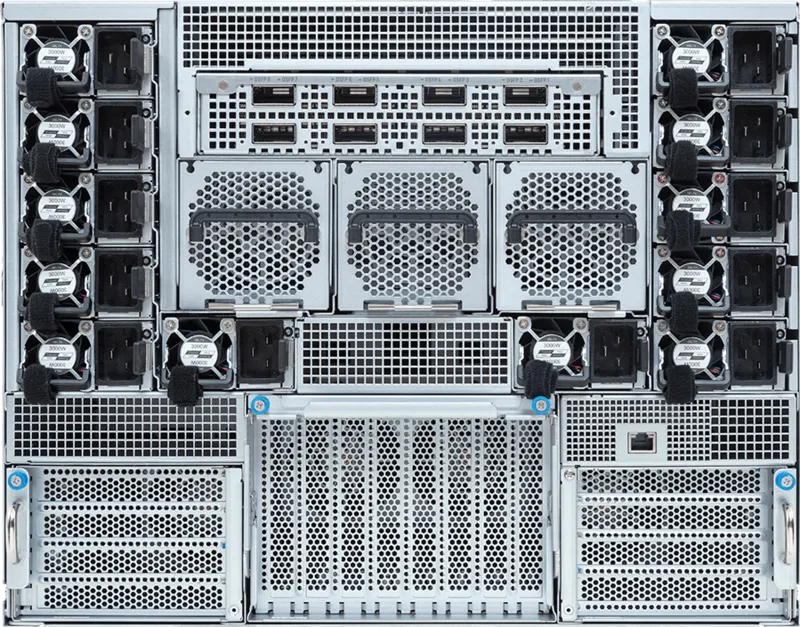

Rear I/O: 8 x OSFP ports; MLAN board - CDB66: 1 x MLAN port
Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM012
Power Supply[#1]: 12 x 3000W 80 PLUS Titanium redundant power supplies
