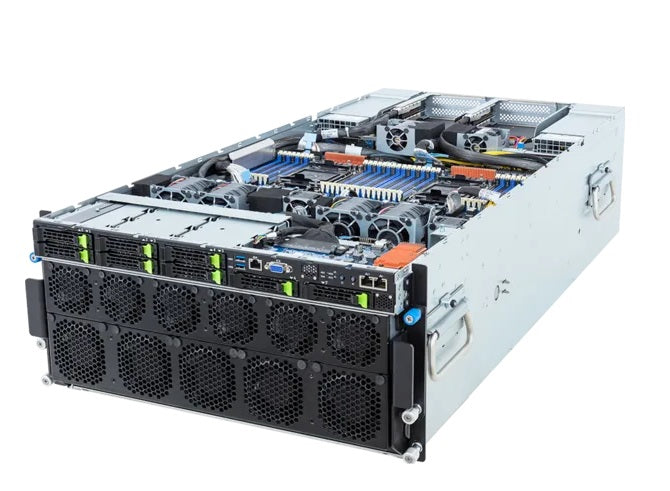

Gigabyte G593-SD2-AAX1 5U Intel Xeon 128 Core 8 Slots GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte G593-SD2-AAX1 is a 5U rackmount server featuring dual 5th Generation Intel Xeon Scalable processors or Intel Xeon CPU Max Series with up to 350W TDP. It includes 32 DIMM slots for DDR5 RDIMM memory, 8 x PCIe Gen5 x16 expansion slots, and 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays for storage. This server supports modular GPU configurations, including NVIDIA HGX H100 with 8 x SXM5 GPUs, and is powered by 4+2 3000W redundant PSUs for optimal performance and power efficiency.
Specifications
Model Number: G593-SD2-AAX1
Brand: Gigabyte
Alt Part Number(s): G593-SD2-AAX1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G593-SD2-AAX1
Processor Supported: Dual Processor
Processor Type: 5th/4th Generation Intel Xeon Scalable Processors, Intel Xeon CPU Max Series
Processor Core: 128 Core/256 Thread
Processor Power: TDP up to 350W
Processor Socket: 2 x LGA 4677 Socket E
Motherboard: MSB3-G40
Chipset: Intel C741
LAN: 2 x 10Gb/s LAN (1 x Intel X710-AT2); 1 x 10/100/1000 Mbps Management LAN
Video: Integrated in ASPEED AST2600; 1 x VGA port
Storage: 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
RAID Levels: Intel SATA RAID 0/1/10/5; Supports optional RAID add-in cards
Modular GPU: NVIDIA HGX H100 with 8 x SXM5 GPUs
PCIe Expansion Slots: 8 x LP x16 (Gen5 x16); 4 x FHHL x16 (Gen5 x16)
Memory Supported: 8TB (32×256 GB 3DS RDIMMs)
Memory Technology: Support DDR5 RDIMM
Memory Slots: 32 x DIMM slots
Memory Channels: 8-Channel memory per processor
Power Supply: 4+2 3000W 80 PLUS Titanium Redundant
Form Factor: 5U Rackmount/GPU server
