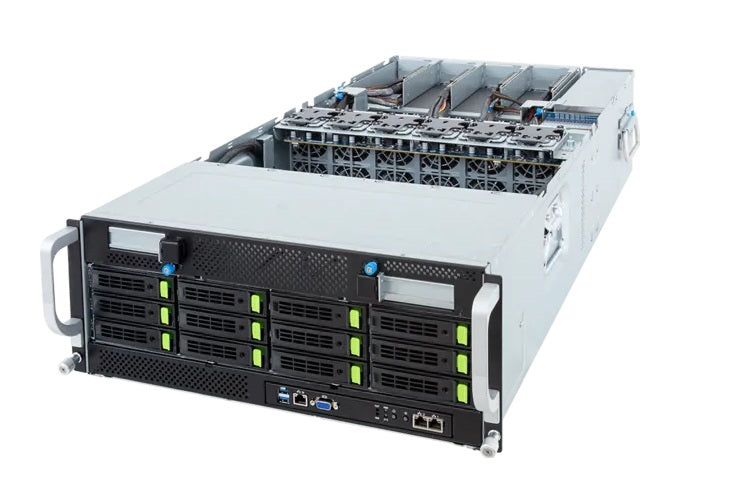

Gigabyte G493-SB3-AAP1 4U Intel Xeon 128 Core 12 Slots GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Gigabyte G493-SB3-AAP1 is a high-density, 4U dual-socket Intel rackmount server built for massive AI training, AI inference, and High-Performance Computing (HPC) workloads. Unlike the 2U model you looked at previously, this 4U design supports larger dual-slot (double-wide) enterprise accelerators and provides a significantly higher power threshold for performance scaling
Specifications
Model Number: G493-SB3-AAP1
Brand: Gigabyte
Alt Part Number(s): G493-SB3-AAP1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G493-SB3-AAP1
Processor Supported: Dual processor
Processor Type: 5th/4th Generation Intel Xeon Scalable Processors Intel Xeon CPU Max Series
Processor Core: 128 Core / 256 Threads
Processor Power: TDP up to 350W
Processor Socket: 2 x LGA 4677 Socket E
Chipset: Intel C741
Motherboard: MSB3-G40
GPU Support: Up to 8 × dual-slot PCIe Gen5 GPUs
Graphics Controller: Integrated in ASPEED AST2600, 1 x VGA port
Networking: 2 × 10GbE Ethernet ports, 1 × 1GbE dedicated management port
Drive Bays: 12 × 3.5"/2.5" Gen5 NVMe/SATA/SAS hot-swap bays
M.2 Storage: 1 × M.2 (2280/22110), PCIe Gen3 x1
RAID Levels: Intel SATA RAID 0/1/5/10, VROC support
PCIe Expansion Slots: 12 × 3.5"/2.5" Gen5 NVMe/SATA/SAS hot-swap bays
Memory Supported: Up to 8TB (32 × 256 GB 3DS RDIMMs)
Memory Technology: DDR5 RDIMM
Memory Channel: 8 Channel memory per processor
Memory Slots: 32 × DDR5 RDIMM Slots
Cooling System: 12 × 60 mm high-speed fans
Power Supply: 3+1 × 3000W 80 PLUS Titanium redundant PSUs
Form Factor: 4U Rackmount/GPU Server
