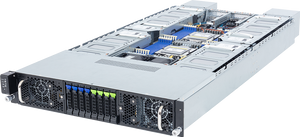

Gigabyte G294-Z42-ACP2 2U Rackmount Dual AMD EPYC 9005/9004 Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

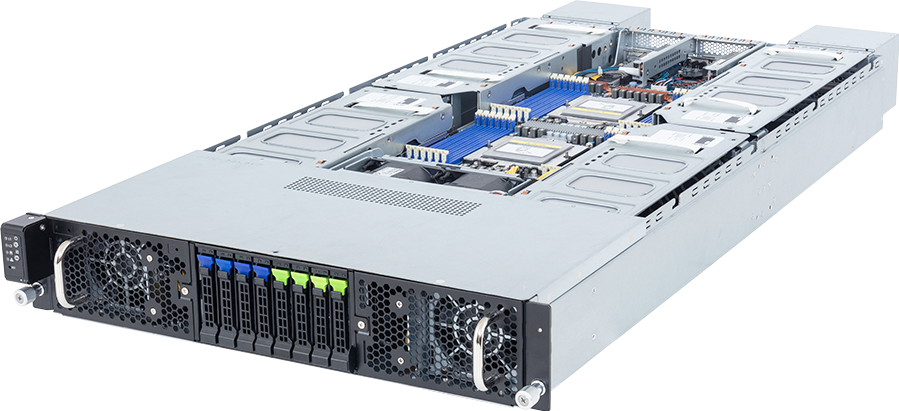

Gigabyte G294-Z42-ACP2, G294 series 2U rackmount server system, supports dual AMD EPYC 9005 and 9004 processors with up to 240W cTDP, 24 DDR5 RDIMM slots at up to 6400 MT/s, and eight dual-slot Gen5 PCIe GPUs. It features 8 PCIe Gen5 x16 slots, 4 Gen5 NVMe, SATA, or SAS-4 and 4 SATA or SAS-4 hot-swap bays, dual 10GbE LAN, dual 3000W 80 PLUS Titanium redundant power supplies, and eight heavy-duty 80mm fans.
Specifications
Model Number: G294-Z42-ACP2
Brand: Gigabyte
Alt Part Number(s): G294-Z42-ACP2
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: G294-Z42-ACP2
Form Factor: 2U Rackmount (448 x 87.5 x 962 mm)
Processor Support: Dual Socket SP5 (LGA 6096); AMD EPYC™ 9005 & 9004 series
Processor TDP: cTDP up to 240W; up to 300W at 30°C ambient
Chipset: System on Chip (SoC)
Motherboard: MZ43-G20
Memory Channels: 12-channel per CPU; 24 x DIMM slots total
Memory Type: DDR5 RDIMM
Memory Speed: Up to 6400 MT/s with AMD EPYC™ 9005; up to 4800 MT/s with AMD EPYC™ 9004
Front Hot-Swap Drive Bays: 4 x 2.5" Gen5 NVMe / SATA / SAS-4; 4 x 2.5" SATA / SAS-4
GPU Support: Up to 8 x dual-slot Gen5 PCIe GPUs via PCIe switches
GPU Configurations: 4 x NVIDIA H200 NVL PCIe; 4 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition; 8 x AMD Radeon™ AI PRO R9700S
PCIe Slots: 8 x FHFL PCIe Gen5 x16; 2 x LP PCIe Gen5 x16
Onboard Networking: 2 x 10 Gb/s LAN ports (Broadcom® BCM57416)
Management LAN: 1 x 10/100/1000 Mb/s dedicated management port
Video Output: Integrated ASPEED® AST2600; 1 x VGA port
Rear I/O: 2 x USB 3.2 Gen1 Type-A; 1 x VGA; 2 x RJ45; 1 x MLAN; system buttons/LEDs
Security: TPM header (SPI interface); optional TPM 2.0 module
Power Supplies: Dual 3000W 80 PLUS Titanium redundant power supplies
Power Cord Standard: C19
Cooling: 8 x heavy-duty 80x80x80mm system fans
