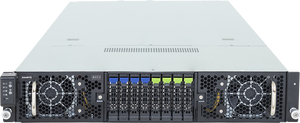

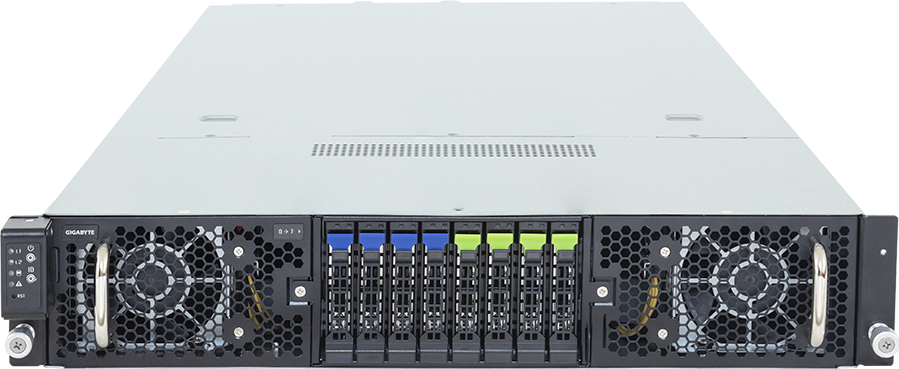

Gigabyte G294-Z22-ACP2 2U Rackmount, AMD EPYC 9005/9004, 8x PCIe Gen5 GPU, Server System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte G294-Z22-ACP2 2U Rackmount Server System features a single-socket SP5 platform supporting AMD EPYC 9005 and 9004 Series processors, 12 DDR5 RDIMM slots with 12-channel memory up to 6400 MT/s, and up to eight dual-slot PCIe Gen5 x16 GPUs. It includes four 2.5-inch Gen5 NVMe, SATA, or SAS-4 bays, four additional 2.5-inch SATA or SAS-4 bays, two PCIe Gen5 x4 M.2 slots, dual 10Gb/s LAN, an ASPEED AST2600 BMC, and dual 3000W 80 PLUS Titanium redundant power supplies.
Specifications
Model Number: G294-Z22-ACP2
Brand: Gigabyte
Alt Part Number(s): G294-Z22-ACP2
Product Type: Server System
Technical Description
Brand: Gigabyte
Model: G294-Z22-ACP2
Form Factor: 2U Rackmount
Dimensions (W x H x D): 438 x 87.5 x 962 mm
Motherboard: MZ23-G20
CPU: Single Socket SP5 (LGA 6096); AMD EPYC 9005 & 9004 Series
Thermal Design Power (cTDP): Up to 400W; up to 500W at 25°C ambient
Memory Slots: 12 x DIMM
Memory Channels: 12-Channel memory per CPU
Memory Type: DDR5 RDIMM
Memory Speed: Up to 6400 MT/s (EPYC 9005); up to 4800 MT/s (EPYC 9004)
GPU Capacity: Up to 8 x dual-slot PCIe Gen5 GPUs
GPU Slots: 8 x FHFL PCIe Gen5 x16; connected via PCIe switches
Add-in Card Slots: 2 x LP PCIe Gen5 x16; directly connected to CPU
Drive Bays: 4 x 2.5" Gen5 NVMe / SATA / SAS-4; 4 x 2.5" SATA / SAS-4
Internal Storage: 2 x M.2; PCIe Gen5 x4; 2280/22110
Networking Ports: 2 x 10 Gb/s LAN; Broadcom BCM57416 controller
Management Port: 1 x dedicated 10/100/1000 Mb/s Management LAN
Baseboard Management Controller (BMC): ASPEED AST2600; integrated VGA
Power Supply: Dual 3000W 80 PLUS Titanium redundant power supplies; AC/DC input options
Cooling Fans: 8 x 80 x 80 x 80 mm system fans
