Gigabyte G293-S43-AAP1 2U Intel Xeon 128 Core 18 Slots GPU Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

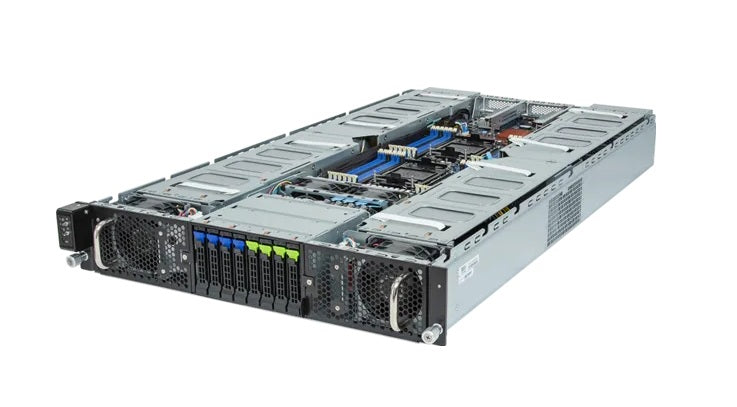

The Gigabyte G293-S43-AAP1 is a high-density, 2U dual-socket Intel rackmount server specifically designed for High-Performance Computing (HPC), AI training, and AI inference workloads. It is an NVIDIA-Certified system optimized to maximize density and throughput for intensive data center applications
Specifications
Model Number: G293-S43-AAP1
Brand: Gigabyte
Alt Part Number(s): G293-S43-AAP1
Product Type: GPU Server
Technical Description
Brand: Gigabyte
Model Number: G293-S43-AAP1
Processor Supported: Dual Processor
Processor Type: 5th/4th Generation Intel Xeon Scalable Processors
Processor Core: 128 Core/256 Thread
Processor Power: TDP up to 225W
Processor Socket: 2 x LGA 4677 Socket E
Motherboard: MS43-G20
Chipset: Intel C741
Graphics Controller: ASPEED AST2600
RAID Levels: RAID SATA RAID 0/1/5/10, VROC support
Networking: 2 × 10GbE (Intel X710-AT2) + 1 × Management LAN
Number of Drive Bays: 4 x 2.5" Gen5 NVMe/SATA/SAS, 4 x 2.5" SATA/SAS
Expansion Slots: 18 PCIe expansion slots
Memory Supported: 6TB DDR5 (24 × 256GB)
Memory Technology: DDR5
Memory Slots: 24 x DIMM slots
Memory Channels: 8-Channel memory per processor
Power Supply: Dual 3000W 80 PLUS Titanium Redundant
System Cooling: 8 x 80x80x38mm
Form Factor: 2U Rackmount/GPU Server
Height: 3.44"
Width: 17.64"
Depth: 31.50"
