- Overview

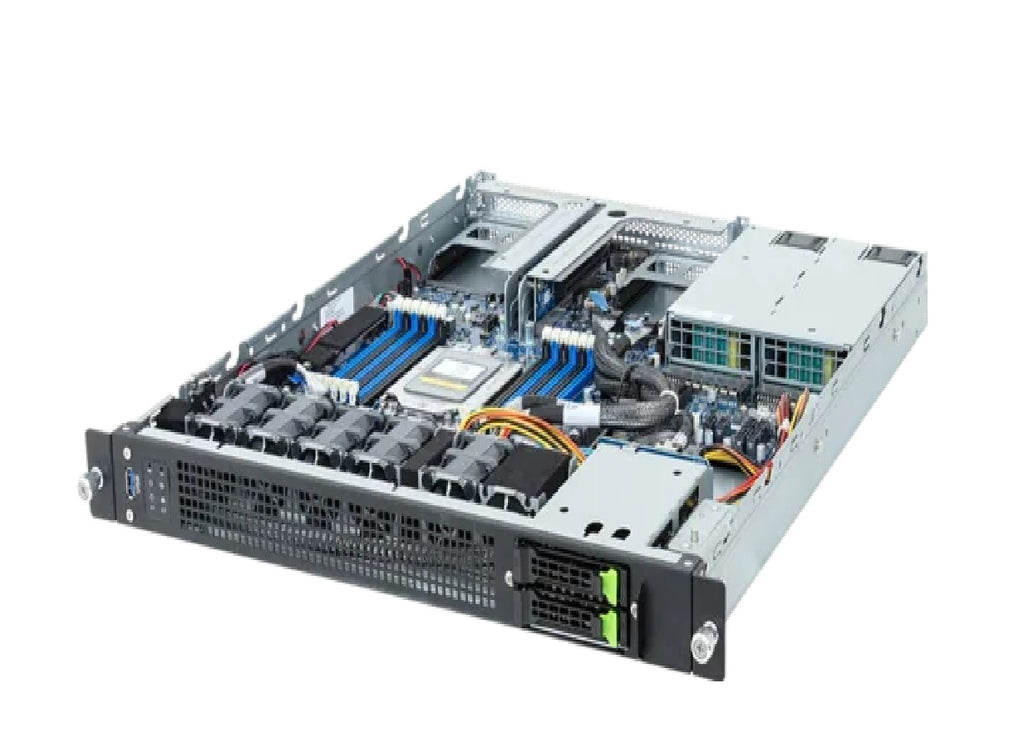

The E143-E30-AAG1 is a 1U edge rack server from Gigabyte, designed for networking, edge computing, and hybrid/private cloud deployments. It supports a single AMD EPYC 8004-series processor and high-speed DDR5 memory
Specifications
Model Number: E143-E30-AAG1
Brand: Gigabyte
Alt Part Number(s): E143-E30-AAG1
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: E143-E30-AAG1
Processor Supported: Single Processor
Processor Type: AMD EPYC 8005/8004 Server Processors
Processor Core: 64 Core/128 Thread
Processor Power: cTDP up to 225W
Processor Socket: 1 x LGA 4844 Socket SP6
Chipset: System on Chip
Motherboard: ME33-DC0
Graphics Controller: ASPEED AST2500, 4 x Mini-DP
Networking: 1 × Intel I210-AT 1GbE + 1 × Dedicated Management LAN
Number of Drive Bays: 2 × 2.5" hot-swap Gen5 NVMe/SATA/SAS-4, 1 × M.2 (2280/22110), PCIe Gen3 x4
Expansion Slots: 2 × FHHL PCIe Gen5 x16, 2 × OCP NIC 3.0 Gen5 x16
Memory Supported: Up to 3TB
Memory Technology: Support DDR5 RDIMM
Number of Memory Slots: 12 x DIMM slots
Memory Speed: AMD EPYC 8005: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC), AMD EPYC 8004: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
Memory Channels: 6-Channel memory per processor
Power Supply: 1+1 800 W 80 PLUS Titanium redundant
Number of Fans: 5 x 40x40x56mm
Form Factor: 1U Rackmount
