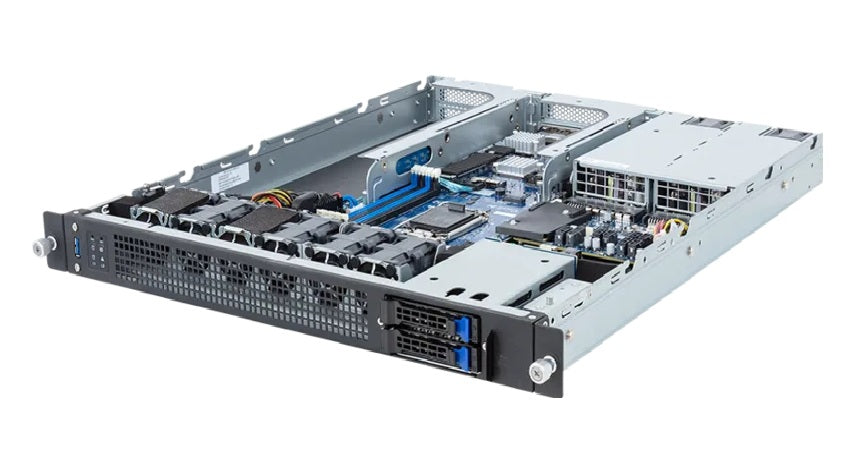

Gigabyte E133-X10-AAA1 1U Intel Xeon 8 Core 3 Slots Barebone Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Gigabyte E133-X10-AAA1 is a 1U server featuring Intel Xeon 6300-Series or E-2400 processors, supporting single processors with a TDP of up to 95W. It comes with 4 x DIMM slots for DDR5 ECC UDIMM memory, supporting up to 4400 MT/s. The server offers 2 x 1Gb/s LAN ports, 2 x 2.5" SATA hot-swap bays, and a PCIe Gen5 x16 expansion slot. Equipped with 1+1 550W 80 PLUS Platinum redundant power supplies, it ensures reliable performance and efficiency for demanding workloads.
Specifications
Model Number: E133-X10-AAA1
Brand: Gigabyte
Alt Part Number(s): E133-X10-AAA1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: E133-X10-AAA1
Processor Type: Intel Xeon 6300-Series, Intel Xeon E-2400, Intel Pentium Gold G7400/G7400T Processor
Processor Cores: Up to 8 CPU Cores
Processor Power: TDP up to 95W
Processor Socket: 1 x LGA 1700
Chipset: Intel C262
Motherboard: MX14-BL1
Graphics Controller: Integrated in ASPEED AST2600; 1 x Mini-DP
LAN: 2 x 1Gb/s LAN (Intel I210-AT); 1 x 10/100/1000 Mbps Management LAN
Drive Bays: 2 x 2.5" SATA hot-swap bays; Internal M.2: 1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU
RAID: Intel SATA RAID 0/1; Support optional RAID add-in cards
PCIe Expansion Slots: 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU; 1 x FHHL x4 (Gen4 x4), from PCH
Front I/O: 1 x USB 3.2 Gen1 port (Type-A); 1 x Power button with LED; 1 x ID button with LED; 1 x NMI button; 1 x Reset button; 2 x LAN activity LEDs; 1 x Storage activity LED; 1 x System status LED
Rear I/O: 2 x USB 3.2 Gen1 ports (Type-A); 1 x Mini-DP; 2 x RJ45 ports; 1 x MLAN port; 1 x ID button with LED
Security Modules: 1 x TPM header with SPI interface; Optional TPM2.0 kit: CTM010
Memory Supported: 128GB
Memory Technology: Support DDR5 ECC UDIMM
Memory Speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)
Memory Channel: Dual Channel memory per processor
Memory Slots: 4 x DIMM Slots
Power Supply: 1+1 550W 80 PLUS Platinum redundant power supplies
Form Factor: 1U Rackmount
