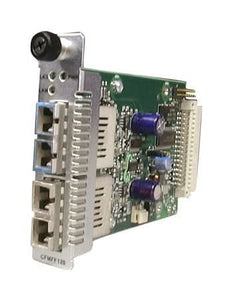

Transition Networks CFMFF1314-220 1000BSX MultiMode Gigabit Ethernet Media Converter
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
This CFMFF1314-220 used individually or in pairs, this media converter can extend Gigabit Ethernet over single mode fiber up to 125 KM. Convert 1000BASE-SX ports on a Gigabit Ethernet switch to 1000BASE-LX on a port-by-port basis. Ideal for campus area networks or other applications requiring the distance advantages of single mode fiber.
Specifications
Model Number: CFMFF1314-220
Brand: Transition Networks
Alt Part Number(s): CFMFF1314-220
Product Type: Gigabit Ethernet Card
Technical Description
Brand: Transition Networks
Model: CFMFF1314-220
Standards: IEEE Std 802.3 2000
Connectors: 2 duplex or simplex fiber optic
Multimode: Min TX PWR: -10.0 dBm, Max TX PWR: -4.0 dBm, RX Sensitivity: -17.0 dBm, Max In PWR: 0.0 dBm, Link Budget: 7.00 dB
3-Position Jumper: HARDWARE Converter mode is determined by jumper settings, SOFTWARE Converter mode is determined by most- recently- saved on- board microprocessor settings.
Status LEDs: PWR Steady LED indicates connection to external power, LKS (Single mode fiber link) Steady LED indicates single mode fiber link, LKM (Multi mode fiber link) Steady LED indicates multi mode fiber link
Power Consumption: 3.5 watts
Compliance: UL Listed, C-UL Listed (Canada); CISPR/EN55022 Class A&B + EN55024; FCC Class A&B; CE Mark
Form Factor: Internal
Width: 0.86"
Depth: 5.0"
Height: 3.4"
Features
Converts single mode to multimode and 1000BASE-SX on a Gigabit Ethernet switch to 1000BASE-LX on a port by port basis.
Multimode signal detect.
Hardware/software mode.
Fiber port enable/disable multimode.
Fiber port enable/disable single mode.
*
