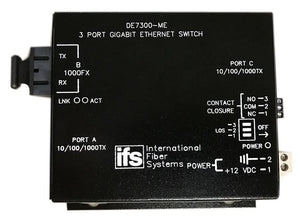

GE Security DE7300-ME 3-Ports Dual Fiber Ethernet Gigabit Transceiver

Overview

The DE7300-ME from GE Security is a Three Port Ethernet Gigabit Transceiver, MM, 2 Fibers. The IFS DE7300 Series Gigabit Ethernet 3-port transceiver is designed to transmit and receive 1000 Mbps data over singlemode fiber or 10/100/1000 Mbps data over CAT5e electrical cable. It is available in any combination of electrical or optical ports. The electrical ports of the IFS DE7300 Series will function as a 10 Mbps, 100 Mbps or 1000 Mbps Ethernet link without any adjustments. The DE7300 is environmentally hardened to operate in extreme temperatures. Loss of optical link contact closure for remote alarm sensing. Status indicating LEDs for power and data activity are present at the RJ-45 connector. At the fiber optic transceiver end, link and data LEDs provide operational status. Plug-and-play design ensures ease of installation, requiring no optical adjustments.



Specifications

Mfr Part Number:  DE7300-ME

Brand:  GE Security

Alt Part Number:  DE7300-ME

Type:   Transceiver



Technical Description

Brand:  GE Security

Model:  DE7300-ME

Number of Fibers Required:  2

Optical Power Budget:  8 dB

Max Distance:  0.3 miles (500 m)

Data Interface:  Ethernet

Data Rate:  10/100/1000 Mbps , IEEE 802.3 Compliant , Full Duplex or Half Duplex

Power:  12 VDC @600 mA

Operating Temp:  -40° C to +74° C

Storage Temp:  -40° C to +85° C

Relative Humidity:  0% to 95% (non-condensing)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Wavelength:  850 nm, Multimode

Mounting:  Surface Mount



Features

10/100/1000 Mbps Ethernet

10/100/1000 BASE_T Electrical Port

1000 BASE-FX Optical Port

Full Duplex or Half Duplex

Auto MDI/MDI-X

Distances up to 30 km (18 miles)

SC Optical Connectors Standard

Power, Transmit and Receive Data Status LED Indicators

IEEE 802.3 Compliant
