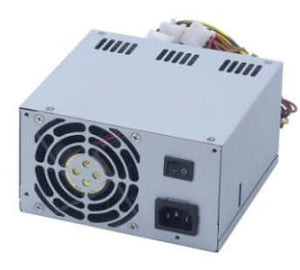

FSP Group 300Watts 20+4Pin ATX12V Power Supply Unit (FSP300-60GLC)

Specifications

Mfr Part Number:                FSP300-60GLC

Condition:                         OEM

Brand:                              FSP Group

Model Number:                  FSP300-60GLC

Type:                               Power Supply Unit



Technical Description

Brand:                             FSP Group

Model:                             FSP300-60GLC

Series:                            Green PS

Type:                              ATX12V ver.2.01

Maximum Power:              300 Watts

Fans:                              INTERNAL 8 cm fan

PFC:                               Active

Main Connector:               20+4Pin

+12V Rails:                     Yes

Power Good Signal:          100-500ms

Hold-up Time:                 17ms min.

Efficiency:                        > 75%

Over Voltage Protection:   +5V, +3.3V, +12V1, +12V2

Overload Protection:         150% max.

Input Voltage:                 100 - 240 V

Input Frequency Range:    47 - 63 Hz

Input Current:                  5 amps maximum / 115 Vrms, 60Hz.

                                      2 amps maximum / 230 Vrms, 50Hz

Output:                           +3.3V@20.0A, +5V@20.0A, +12V1@8.0A, +12V2@14.0A, -12V@0.8A, +5Vsb@2.0A

                                      +3.3V&+5V total output shall not exceed 130 Watts.

                                      +3.3V&+5V&12V1&+12V2 total output shall not exceed 280 Watts.

MTBF:                             >100,000 Hours

Approvals:                      UL, CSA, TUV, NEMKO, CB & CE



Features

Low Ripple & Noise

Output over voltage protection

Short circuit protection on all outputs

Reset table power shut down

Approved by UL,CSA, TUV, NEMKO, CB & CE

INTERNAL 8 cm fan

Under 40dBA Noise Design at full load

100% burn-in under high ambient temperature(50°C)

Vacuum-impregnated transformer

MTBF:100K hours at 25°C

100% Hi-pot tested

line input fuse protection

Active PFC ( Power Factor Correction ) circuit

complies with EN61000-3-2

AC input full range
