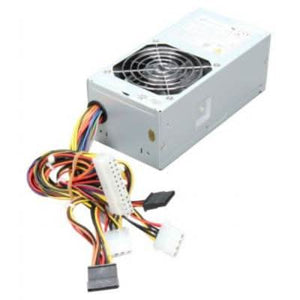

FSP-Group FSP300-60GHT 300Watts 115-230Volts 20+4Pins Power Supply Unit

Specifications

Mfr Part Number:  FSP300-60GHT

Brand:  FSP-Group

Model Number:  FSP300-60GHT

Type:  Power Supply



Technical Description

Brand:  FSP Group

Model:  FSP300-60GHT

Type:  TFX12V

Maximum Power:  300W

Fans:  1x80mm sleeve bearing fan linked with Thermal Sensor

PFC:  Active

Main Connector:  20+4Pin

+12V Rails:  2

SATA Power Connector:  1

SLI:  No

CrossFire:  No

Modular:  No

Efficiency:  85%

Energy-Efficient:  80 PLUS Certified

Over Voltage Protection:  Yes

Input Voltage:  115V AC to 230V AC

Input Frequency Range:  47 - 63 Hz

Input Current:  6A @ 115V, 3A @ 230V

Output:  +3.3V@20A, +5V@22A, +12V1@14A, +12V2@16A, -12V@0.5A, +5VSB@2.0A

MTBF:  >100,000 Hours

Approvals:  NEMKO, TUV, CSA, IEC, UL, CE

Dimensions:  6.89" x 3.35" x 2.76"

Connectors:  1 x 24pin Main connector, cable length: 320 mm (12.6 inches), 1 x 4Pin CPU, cable length: 300 mm (11.8 inches), 2 x SATA, cable length: 320mm (12.6 inches) / 150mm (5.9 inches), 2 x Peripheral, cable length: 320mm (12.6 inches) / 150mm (5.9 inches), 1 x Floppy, cable length: 150mm (5.9 inches)



Features

SUPPORTS AMD/INTEL CPU SYSTEM

300-WATT INTEL TFX 12V for PC

80mm COOLING FAN SYSTEM

THERMAL CONTROL SYSTEM LINKED TO FAN

ENERGY SAVER | 1-WATT STANDBY MO

80PLUS CERTIFIED

SUPPORTS SERIAL-ATA OUTPUT

COMPLETE OVP, OCP, SCP OUTPUT PROTECTION



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
