Description

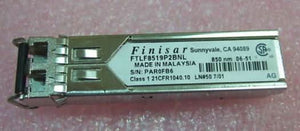

Finisar's FTLF8519P2xNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3 and Fibre Channel FC- PI-2 Rev. 5.0. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
This module inserts into one SFP cage port, but the module has two optical ports (one for transmit and one for receive).
| Environmental Parameters | ||||
| Max Operating Temperature: | 185 | |||
| Min Operating Temperature: | -4 | |||
| Header | ||||
| Compatibility: | PC | |||
| Manufacturer: | Finisar | |||
| Model: | FTLF8519P2BNL | |||
| Packaged Quantity: | 1 | |||
| Product Line: | Finisar | |||
| Interface Provided | ||||
| Connector Qty: | X 2 | |||
| Connector Type: | LC multi-mode | |||
| Qty: | 1 | |||
| Type: | Network | |||
| Interface Required | ||||
| Type: | None | |||
| Networking | ||||
| Cabling Type: | Ethernet 1000Base-SX | |||
| Connectivity Technology: | Wired | |||
| Data Link Protocol: | Fibre Channel , Gigabit Ethernet | |||
| Data Transfer Rate: | 2.12 Gbps | |||
| Form Factor: | Plug-in module | |||
| Max Transfer Distance: | 1640 ft | |||
| Optical Wave Length: | 850 nm | |||
| Ports Qty: | 2 | |||
| Type: | SFP (mini-GBIC) transceiver module | |||
| Power Device | ||||
| Type: | None | |||
| Slot Provided | ||||
| Type: | None | |||
| Slot Required | ||||
| Total Qty: | 1 | |||
| Type: | SFP (mini-GBIC) | |||
| Dimensions & Weight | ||||
| Depth: | 2.2 in | |||
| Height: | 0.5 in | |||
| Width: | 0.6 in | |||
| Connectors (for SD) | ||||
| Left Connector Type: | LC multi-mode | |||
