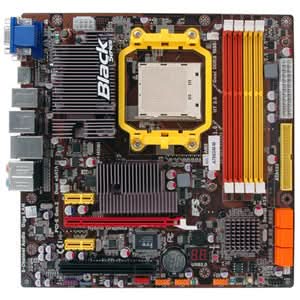

ECS A785GM-M AMD 785G Socket-AM3 PHENoM II X3 Micro ATX Motherboard

$139.00 Regular price
Sale price$139.00
ECSSKU: 596912
Model Number: A785GM-M
Condition: New
In stock:  Yes
No reviews


This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


The latest ECS Black Series A785GM-M is based on the AMD 785G chipset with 140W Phenom II processor (Socket AM3) support. The A785GM-M is integrated with ATI Radeon HD 4200 graphics IGP, which includes AMD Hybrid Crossfire technology and DirectX 10.1 capabilities. For better Home Theater solution.A785GM-M speeds up overclocking fine tune and fast boot to receive eMail or other applications without additional cost. ECS A785GM-M builds a perfect media center for users, providing the complete applications.

A785GM-M Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     AMD
  • Chipset Model:     785G
  • Total Processor Supported:     1
  • Processor Technology:     HyperTransport Technology
  • Processor Socket:     Socket AM3 PGA-941
  • Processor Supported:     Phenom II
  • HyperTransport Speed:     2600 MHz
  • 64-bit Processing:     Yes
  • Multi GPU Supported:     CrossFire


  • Number of Memory Slots:     4
  • Maximum Memory:     32 GB
  • Memory Standard:     DDR3-1333/PC3-10600
  • Memory Standard:     DDR3-800/PC3-6400
  • Memory Standard:     DDR3-1066/PC3-8500
  • Memory Technology:     DDR3 SDRAM

    I/O Controller

  • Controller Type:     Serial ATA/300
  • Controller Type:     Ultra ATA/100 (ATA-6)
  • RAID Supported:     Yes
  • RAID Levels:     1+0
  • RAID Levels:     1
  • RAID Levels:     0


  • Onboard Video:     On-board Video Chipset
  • Graphics Controller Memory:     512 MB


  • Sound Controller Manufacturer:     Realtek
  • Sound Controller Model:     ALC 888S
  • Audio Channels:     7.1

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     4
  • Number of PCI Slots:     1
  • Total Number of PCI Express Slots:     3
  • Number of PCI Express x1 Slots:     3


  • eSATA:     Yes
  • Total Number of USB Ports:     6
  • Number of USB 2.0 Ports:     6
  • Total Number of FireWire/i.LINK Ports:     1
  • Number of FireWire/i.LINK 400 Ports:     1
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • VGA:     Yes
  • HDMI:     Yes
  • Number of HDMI Outputs:     1
  • DVI:     Yes
  • Number of DVI Outputs:     1
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     2
  • Number of SATA Interfaces:     8
  • Total Number of Onboard USB Ports:     3
  • Total Number of Onboard FireWire/i.LINK Ports:     1
  • Onboard LEDs Header:     Yes
  • Onboard Audio Header:     Yes
  • Onboard S/PDIF Header:     Yes


  • Buttons & Keys:     CMOS Clear
  • Buttons & Keys:     Reset
  • Buttons & Keys:     Power

    Physical Characteristics

  • Form Factor:     Micro ATX
  • Width:     9.6"
  • Depth:     9.6"


  • Green Compliant:     Yes
  • Green Compliance Certificate/Authority:     RoHS
