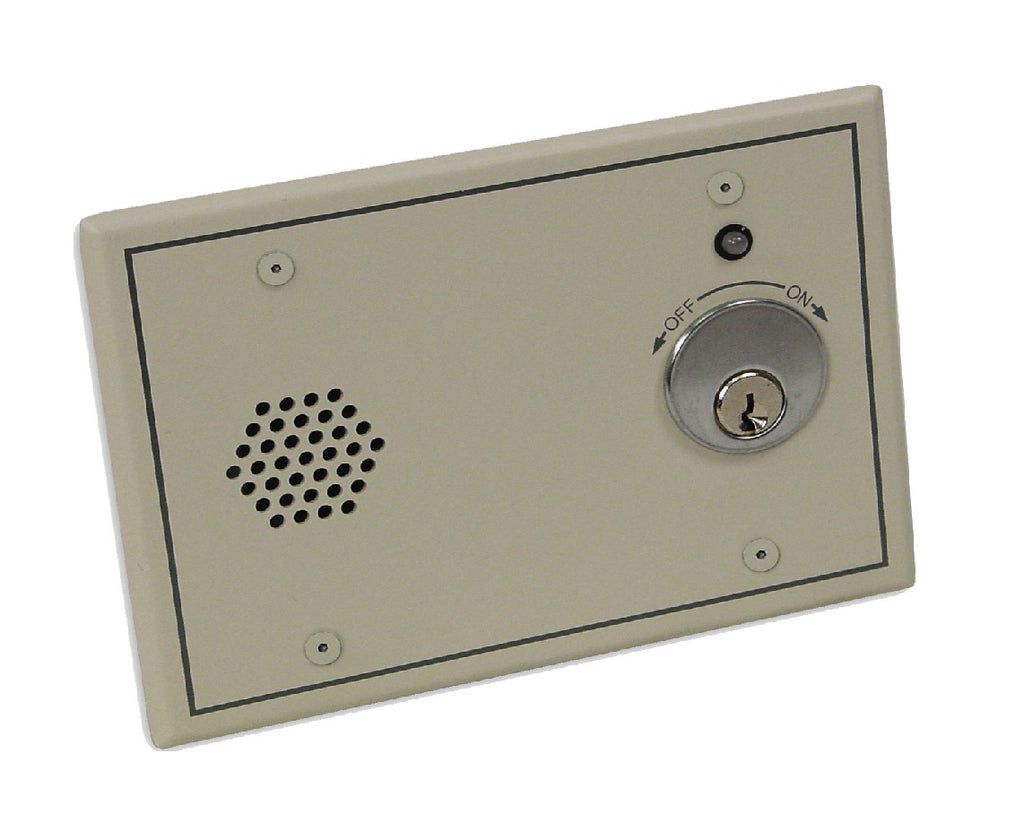

DSI ES4200-K3-T1 ~250 mA AC 12–24V Door Management Alarm (DMA)
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The ES4200-K3-T1 is a high-quality, multifunctional Door Management Alarm (DMA) manufactured by Designed Security, Inc. (DSI), a Detex Corporation company. It combines the functionalities of a door prop/held-open alarm and an intrusion/door forced alarm into a single master unit to monitor access control points
Specifications
Model Number: ES4200-K3-T1
Brand: DSI
Alt Part Number(s): ES4200-K3-T1
Product Type: Door Management Alarm (DMA)
Technical Description
Brand: DSI
Model Number: ES4200-K3-T1
Key switch: K3 version uses rim hardware with cylinder, DPDT switch
Auto Reset: 0 sec–5 min (or manual)
Alarm Delay: 0 sec–5 min (or infinite)
Silent Time: 0–90 min
Alarm Output: Selectable 96 dB or 103 dB at 3ft
Control Inputs: Door contact, shunt, remote reset/bypass
Silent Time: ~90 minutes configurable
Door Monitoring: Door held open, door forced, intrusion detection
Protection: Yes
Power Input: 12–24 VAC / VDC
Current Draw: ~250 mA
Mounting: 3-gang electrical back box, 2.5 in deep
