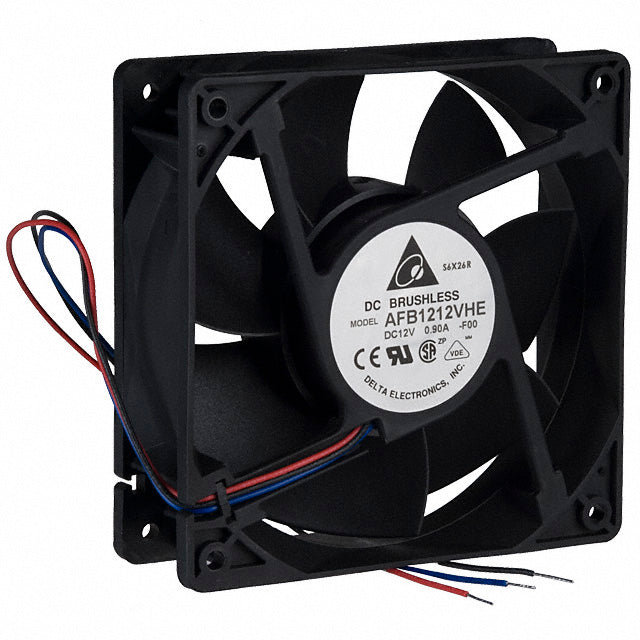

Delta Electronics AFB1212VHE-F00 AFB-Series 12Volts DC 0.600Amp 3200Rpm 3-Wire Tubeaxial Ball Bearing Fan
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
| Specifications | |
| Model Number | AFB1212VHE-F00 |
| Brand | Delta Electronics |
| Condition | OEM |
| Alt Part Number(s) | AFB1212VHE-F00 |
| Type | Cooling Fan |
| Technical Description | |
| Brand | Delta Electronics |
| Model | AFB1212VHE-F00 |
| Series | AFB |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 120mm L x 120mm H x 38mm W |
| Air Flow | 129.9 CFM (3.68m³/min) |
| Static Pressure | 0.420 in H2O (104.6 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Noise | 48 dB(A) |
| Power (Watts) | 7.20W |
| RPM | 3200 RPM |
| Termination | 3 Wire Leads |
| Weight | 0.565 lb (256.28g) |
| Operating Temperature | 14 - 140°F (-10 - 60°C) |
| Current Rating | 0.600A |
| Voltage Range | 4 - 13.2VDC |
| Life Expectancy | 70000 hrs @ 40°C |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
* | |
