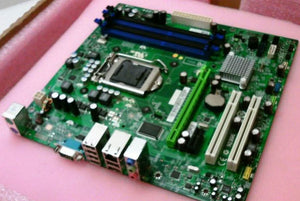

DELL D735T / 0D735T Vostro 430 Desktop DT Motherboard

This is a Genuine Dell Motherboard for the Vostro 430 DT System, Compatible Dell P/N: D735T.

This auction does not include CPU, heatsinks, fans, memory, etc.

Motherboard Specifications

• Chipset
• Intel H57 Express

• Supported Processors
• Socket Type: LGA1156
• Intel CoreTM i7 (880, 870)
• Intel CoreTM i5 (760, 650)
• Intel CoreTM i3 (540)
• Intel Pentium Dual CoreTM (G6950)

• Supported Memory
• Up to 4GB 2 Dual Channel DDR3 SDRAM at 1333Mhz - 2 DIMMS

• Audio
• Integrated

• Video
• Not Integrated

• Expansion
• PCI: 2 Slots
• PCIe x1: 1 Slots
• PCIe x16 (Graphics): 1 Slot
• 3.5" Bays: 3 bays (1 external; 2 internal for Hard Disk Drives)
• 5.25" Bays: 2 bays (for Optical Disc Drives)

• Peripheral Interfaces
• 10 external USB Ports (4 front, 6 back); 2 internal USB ports
• DVI
• Three back-panel connectors for line-in, line-out, microphone-in, two front-panel connectors for headphone-output and microphone-in
• Serial, PS/2 for Keyboard and Mouse, RJ-45 (10/100/1000 Ethernet)
