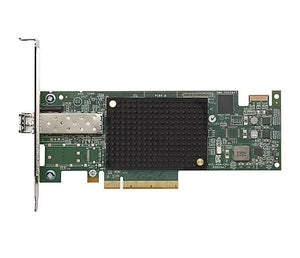

Emulex LPE16000B-M6 Gen 5 Single-Port 16Gb Fibre-Channel Host Bus Adapter

Overview

The LPe16000B Gen 5 (16Gb) PCIe 3.0 single-port FC HBA delivers best Gen 5 reliability and performance (1.2 million IOPS) on a single port and lightning-fast latency to accelerate application performance. Ideal for use with high-performance SSDs. Features ExpressLane QoS, ClearLink diagnostics and T10 PI data integrity with offload.



Specifications

Model Number:  LPE16000B-M6

Brand: Emulex

Alt Part Number(s):  LPE16000B-M6

Product Type:  Host Bus Adapter (HBA)



Technical Description

Brand: Emulex

Model:  LPE16000B-M6

Connectivity Technology:  Wired

Data Link Protocol:  16Gb Fibre Channel (Short Wave)

Data Transfer Rate:  14.025 Gbps

Features:  Auto-negotiation

Fibre Channel:  FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-FS-2, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-HBA, FC-LS-2, FC-MI, FC-MJS, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-4, FC-PI-5, FC-PLDA, FC-SB-2, FC-SB-4, FC-SP, FC-SP-2, FC-Tape, FCP, FCP-2, FCP-4

Form Factor:  Plug-in card

Interface Type:  PCI Express 3.0 x8

Low Profile:  Low profile

PCI Specification Revision:  PCIe 3.0

Type:  Network adapter

Min Operating System:  Linux, Microsoft Windows Server, SunSoft Solaris

Humidity Range Operating:  5 - 95% (non-condensing)

Max Operating Temperature:  131 °F

Min Operating Temperature:  32 °F

Depth:  6.6 in

Height:  2.7 in
