Overview

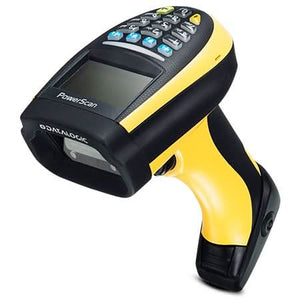

The PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range. The Datalogic PowerScan PM9500 is also known as the Data Logic PowerScan PM9500
Specifications
Mfr Part Number: PM9500-DK
Brand: Datalogic
Model Number: PM9500-DKHP910RB
Type: Barcode Scanner
Technical Description
Brand: Datalogic
Model: PM9500-DK
Series: PowerScan PM9500
1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code;Keypad: PM9500-D: 4 Configurable Keys, PM9500-DK: 16 Configurable Keys
Imager Sensor: PM9500: 864 x 544; PM9500-HP: 1280 x 1024
Light Source: Aiming: 630 - 680 nm VLD; Illumination: White LEDs
Print Contrast Ratio (Minimum): 15%
Reading Angle: Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40°
Battery Lithium-Ion: 2150 mAh
Charge Time: External Power: 4 Hours;
Host Power: 10 Hours
Reads Per Charge: Continuous Reading: 30,000 +
Cradle Indicator LEDS: Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
Dimensions: 21.2 x 11.0 x 7.4 cm / 8.3 x 4.3 x 2.9 in
Features
High-performance Liquid Lens allows one model to read standard, wide and high density codes
Snappy omnidirectional reading
Intuitive aiming system
Soft white light illumination
Available with optional display and 4 or 16-key keyboards
High speed 433 MHz and 910 MHz radio communications
Point-to-point and multi-point transmission
Networking and seamless roaming
Multiple interfaces available
Ethernet Connectivity (Standard and Industrial)
Lithium-Ion battery replaces in 3 seconds!
Datalogic’s Motionix™ motion-sensing technology
Ergonomic shape
Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
Water and Particulate Sealing Rating: IP65
In-field replaceable window and cradle contacts
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
