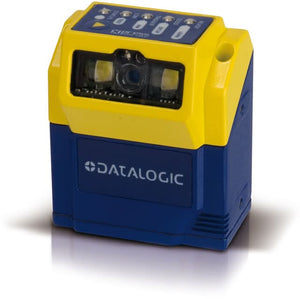

Datalogic Fixed Barcode Scanner 2D Area Imager Matrix 210 937501046

Overview

The Datalogic Matrix 210 is a 2D reader offering extreme reading performance and integrated Ethernet in a ultra-compact housing. Thanks to the WVGA image sensor, capturing up to 60 frames per second and to the powerful internal illuminator, the Matrix 210 offers extreme dynamic reading capability. The unrivaled decoding libraries running on the high speed hardware platform deliver superior reading robustness and impressive decoding rates, supporting high system throughput and so improving efficiency of productions. The on-board Ethernet makes effective the transfer of both reading data and captured images, that can be easily and quickly uploaded on external PCs or servers, simply for storage or also for offline process analysis.



Specifications

Model Number:  937501046

Brand:  Datalogic

Alt Part Number(s):  937501046

Product Type:  Barcode Scanner



Technical Description

Brand:  Datalogic

Model:  937501046

Frame Rate:  60 frame/s

Scanner Type:  2D Area Imager

Reading Angles:  Max. Pitch: ± 35°; Tilt: 0-360°

Operating Temperature:  0 to 50 °C (32 to 122 °F)

Storage Temperature:  -20 to 70 °C (-4 to 158 °F)

Humidity:  90% non condensing

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet
