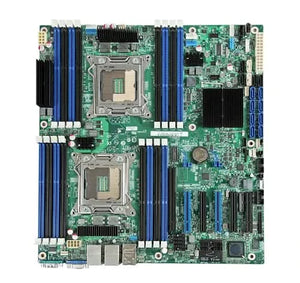

Intel S2600CP4 Dual Intel Xeon E5-2600 LGA2011 DDR3 SSI EEB Server Motherboard

Specifications

Model Number:  S2600CP4

Brand:  Intel

Part Number(s): BBS2600CP4

Product Type:  Server Board



Technical Description

Brand:  Intel

Model:  S2600CP4

CPU Socket Type:  Dual LGA 2011

CPU Type:  Dual Intel Xeon E5-2600

Number of DDR3 Slots:  16 x 240pin

DDR3 Standard:  DDR3 1600

Maximum Memory Supported:  512GB

PCI Express 3.0 x16:  1

PCI Express x8:  5

SATA:  14 Total

Onboard Video Chipset:  Integrated Graphics

LAN Chipset:  4 1GbE LAN

LAN Speed:  10/100/1000Mbps

Max LAN Speed:  Quad 10/100/1000Mbps

COM Ports:  1

Video Ports:  D-Sub

USB 1.1/2.0:  4 x USB 2.0

Form Factor:  SSI EEB

Dimensions (W x L):  12.0" x 13.0"



Features

Intel TXT Technology (TPM header on board)

Integrated BMC with IPMI: IPMI 2.0

Max TDP: 135 W
