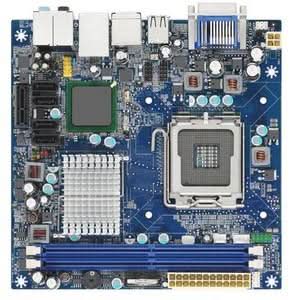

Intel BLKDG45FC Chipset-G45 Express Socket-T LGA-775 DDR2 SDRAM Mini-ITX Motherboard
Roll over image to zoom in Click on image to zoom
Intel BLKDG45FC Chipset-G45 Express Socket-T LGA-775 DDR2 SDRAM Mini-ITX Motherboard

Intel BLKDG45FC Chipset-G45 Express Socket-T LGA-775 DDR2 SDRAM Mini-ITX Motherboard

Price:
$109.00
IntelSKU: ET1045
Model Number: BLKDG45FC
Alt. Part Number: DG45FC
Condition: New
In stock:  Yes
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Intel Partner Reseller.

Learn more by visiting the manufacturer's website.

Manufacturer's Website

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

Overview

Built in the mini-ITX form factor, Intel Desktop Board DG45FC is a small but powerful desktop board with integrated HDMI display output and hardware accelerated decode during high-definition playback.



Specifications

Model Number:  BLKDG45FC

Brand:  Intel

Alt Part Number(s):  DG45FC

Product Type:  Motherboard



Technical Description

Brand:  Intel

Model:  BLKDG45FC / DG45FC

Chipset:  Intel G45 Express

Total Processor Supported:  1

Processor Technology:  Viiv Technology

Processor Socket:  Socket T LGA-775

Processor Supported:  Core 2 Duo, Celeron Dual-Core, Celeron, Xeon Dual-Core

Front Side Bus:  1333 MHz, 1066 MHz, 800 MHz

64-bit Processing:  Yes

Number of Memory Slots:  2

Maximum Memory:  4 GB

Memory Standard:  DDR2-800/PC2-6400, DDR2-667/PC2-5300

Memory Technology:  DDR2 SDRAM

Controller Type:  SATA/300

RAID Supported:  Yes

RAID Levels:  0, 1, 5, 1+0

Onboard Video:  On-board Video Chipset

Graphics Controller:  Intel GMA X4500HD

Sound Controller:  IDT 92HD73E

Audio Channels:  7.1

Gigabit Ethernet:  Yes

Number of Total Expansion Slots:  1

Total Number of PCI Express Slots:  1

Number of PCI Express x1 Slots:  1

Total Number of USB Ports:  6

Number of USB 2.0 Ports:  6

Audio Line In:  Yes

Audio Line Out:  Yes

Microphone Port:  Yes

Number of S/PDIF Out Ports:  1

Number of HDMI Outputs:  1

Number of DVI Outputs:  1

Network (RJ-45):  Yes

Number of SATA Interfaces:  5

Total Number of Onboard USB Ports:  2

Onboard LEDs Header:  Yes

Onboard Audio Header:  Yes

Form Factor:  Mini ITX

Width:  6.7"

Depth:  6.7"

Green Compliance Certificate/Authority:  RoHS, ENERGY STAR



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
