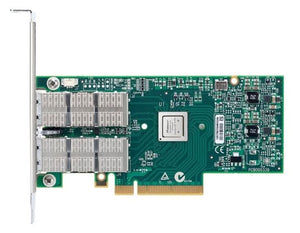

Mellanox Technologies MCX314A-BCBT ConnectX-3 EN 40Gbps 1000Base-T PCI-Express 3.0 x8 QSFP Network Adapter

Overview

Mellanox ConnectX-3 EN Gigabit Ethernet Media Access Controller (MAC) with PCI Express 3.0 delivers high-bandwidth and industry-leading Ethernet connectivity for performance-driven server and storage applications in enterprise data centers, high-performance computing, and embedded environments. Clustered databases, web infrastructure, and high frequency trading are just a few applications that will achieve significant throughput and latency improvements resulting in faster access, real-time response and more users per server. ConnectX-3 EN improves network performance by increasing available bandwidth while decreasing the associated transport load on the CPU especially in virtualized server environments. ConnectX-3 is well suited for blade server and LAN on Motherboard (LOM) designs. Its integrated PHYs, and minimal additional external component requirements were designed for a small PCB footprint. It also has an array of power saving features with real-time monitors that lower total system power usage.



Specifications

Model Number:  MCX314A-BCBT

Brand:  Mellanox

Alt Part Number(s): 00NK003

Type:  Network Adapter



Technical Description

Brand:  Mellanox

Model:  MCX314A-BCBT

Series:  ConnectX-3 EN

Compliant Standards:  IEEE 802.1p , IEEE 802.1Q , IEEE 802.1Qbb , IEEE 802.3ad (LACP) , IEEE 802.3az , IEEE 802.3ba

Connectivity Technology:  Wired

Data Link Protocol:  40 Gigabit Ethernet

Data Transfer Rate:  40 Gbps

Form Factor:  Plug-in card

Interface Type:  PCI Express 3.0 x8

Network Transport Protocol:  iSCSI , TCP/IP , UDP/IP

PCI Specification Revision:  PCIe 3.0

Expansion Slot Type:  QSFP

Ports Qty:  2

Network Technology:  10/100/1000Base-T

Remote Management Protocol:  RMON , RMON 2

Type:  Network Adapter

Green Compliant:  Yes

Green Compliance Certificate/Authority:  RoHS-6

OS:  Microsoft Windows Compute Cluster Server 2003 , Microsoft Windows HPC Server 2008 , Microsoft Windows Server 2008 , Red Hat Enterprise Linux , VMware ESX Server 3.5

Depth:  5.6 in

Height:  2.7 in



Features

Auto-negotiation

DiffServ support

Jumbo Frames support

Quality of Service (QoS)

RDMA support
