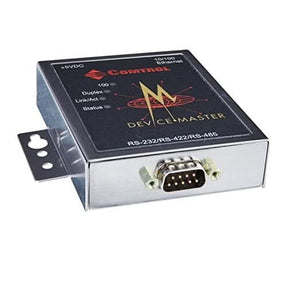

Comtrol 99435-0 DeviceMaster RTS Single Port DB9M Terminal Device Server

Overview

The Comtrol DeviceMaster RTS 1-Port DB9 is a single-port device server designed for network-enabling serial communications devices. When used with the included NS-Link driver software and a host PC, the DeviceMaster RTS enables placement of COM or TTY ports anywhere on an Ethernet network or across the Internet. In applications where connecting legacy serial devices to a PC without software changes is a requirement, a pair of DeviceMaster RTS units can be used to create a point-to-point serial tunnel across the network that seamlessly transfers serial data via TCP or UDP socket connections. The product complies with the European RoHS Directive 2002/95/EC.



Specifications

Model Number:  99435-0

Brand:  Comtrol

Alt Part Number(s):  99435-0

Product Type:  Device Server



Technical Description

Brand:  Comtrol

Model:  99435-0

Product Series:  DeviceMaster

Number of Network (RJ-45) Ports:  1

Number of Serial Ports:  1

Data Transfer Rate:  230 Kbps

Connectivity Technology:  Wired

Network / Transport Protocol:  TCP/IP

Interfaces:  1 x 100Base-TX - RJ-45, 1 x RS-232/422/485 - DB-9

Data Link Protocol:  RS-485, Fast Ethernet, Ethernet, RS-422, RS-232

Remote Management Protocol:  HTTP, Telnet, SNMP

Ethernet Technology:  Fast Ethernet

Nominal Voltage:  AC 100 V

Frequency Required:  50/60 hertz

Power Consumption Operational:  2.1 watt

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  Rack-mountable

Height:  0.9"

Width:  2.9"

Depth:  3.7"



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
