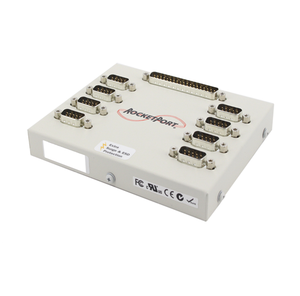

Comtrol 30045-8 Rocketport Infinity 8-Ports Surge Serial Panel

Overview

This RocketPort INFINITY octacable product delivers eight-ports of additional in-server serial connectivity via a fan-out DB9M octacable. Data communication of 921Kbps is connected through RS-232/422/485 software-selectable ports. The serial adapter card is a low profile design suitable for use in both standard servers and 2U rackmount servers. Product is fully compatible with systems that have 32 or 64 bit 3.3 or 5 Volt PCI and PCI-X expansion slots. The INFINITY design utilizes the Comtrol Unity ASIC technology that takes full advantage of the 66 MHz BUS speed available on PCI-X servers.



Specifications

Model Number:  30045-8

Brand:  Comtrol

Alt Part Number(s):  30045-8

Product Type:  Serial Panel



Technical Description

Brand:  Comtrol

Model:  30045-8

Ports Type:  8 x Serial

Transfer Rate:  460Kbps

Standards:  RS-232, RS-422, or RS-485

Connector:  8 x 9 pin D-Sub (DB-9) – male

Min Operating Temperature:  32 °F

Max Operating Temperature:  140 °F

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Width:  5.5 in

Height:  4.6 in



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
