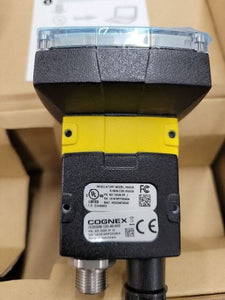

Cognex IS2000M-120-40-000 CMOS Imager In Sight Vision Camera Sensor
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
Digital industrial vision camera (300Kpixel) - COGNEX (In-Sight 2000 series) - 2000-120 - 640x480pixels VGA resolution (1/3" CMOS monochrome sensing) - 75fps - S-mount type - 32MB (program; non-volatile flash memory) + 128MB (SDRAM) - 1 x digital input (15-24Vdc / opto-coupler; isolated trigger input) + 1 x digital input (15-24Vdc / opto-coupler; isolated discrete input) + 4 x digital outputs (28Vdc 50mA / Sink/Source discrete outputs) - 8-pin M12 connector (X-coded) (Ethernet) + 12-pin M12 connector (Supply) - Supply voltage 24Vdc - with RS-232 + Ethernet + PROFINET + Modbus TCP + Ethernet/IP communication capability - IP65 - Aluminium (painted) housing - contains Diffuse ring light cover
Specifications
Model Number: IS2000M-120-40-000
Brand: Cognex
Product Type: Vision Camera Sensor
Technical Description
Brand: Cognex
Model: IS2000M-120-40-000
Image sensor characteristics: 640x480pixels VGA resolution (1/3" CMOS monochrome sensing)
Memory capacity: 32MB (program; non-volatile flash memory) , 128MB (SDRAM)
Connection type: 8-pin M12 connector (X-coded) (Ethernet) , 12-pin M12 connector (Supply)
Digital inputs: 1 x digital input (15-24Vdc / opto-coupler; isolated trigger input)
Digital outputs: 4 x digital outputs (28Vdc 50mA / Sink/Source discrete outputs)
Communication protocol: RS-232 , Ethernet , PROFINET , Modbus TCP
Supply voltage (DC): 24Vdc
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Mounting mode: S-mount type
Height: 0.87 In
Width: 2.37 In
Depth: 3.61 In
*
