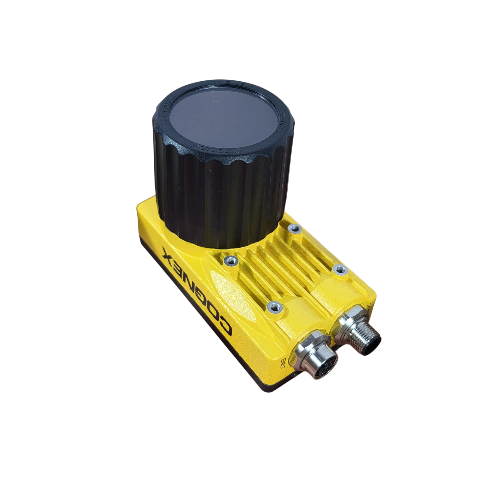

Cognex IS5403-01 In-Sight 5000 2MP Industrial C-Mount Vision Camera Sensor

Overview

Digital industrial vision camera (2Mpixel) - COGNEX (In-Sight 5000 series) - 5403 - 1600x1200pixels UXGA resolution (1/1.8" CCD monochrome sensing) - 14fps - C-mount type - 128MB (program; non-volatile flash memory) + 256MB (SDRAM) - 1 x digital input (20-28Vdc Sink/Source / opto-coupler; isolated trigger input) + 2 x digital outputs (28Vdc 200mA / Sink/Source discrete outputs) - 8-pin M12 connector (Ethernet) + 8-pin M12 connector (Breakout) - Supply voltage 24Vdc - with RS-232C + Ethernet communication capability - IP67 - Aluminium (die-cast) housing



Specifications

Model Number:  IS5403-01

Brand:  Cognex

Alt Part Number(s):  IS5403-01

Product Type:  Vision Camera Sensor



Technical Description

Brand:  Cognex

Model:  IS5403-01

Product Series:  In-Sight 5000 series

Image Sensor Characteristics:  1600x1200pixels UXGA resolution

Connection Type:  8-pin M12 connector (Ethernet) ; 8-pin M12 connector (Breakout)

Digital Inputs:  1 x digital input (20-28Vdc Sink/Source / opto-coupler; isolated trigger input)

Digital Outputs:  2 x digital outputs (28Vdc 200mA / Sink/Source discrete outputs)

Communication Protocol:  RS-232C ; Ethernet

Supply Voltage (DC):  24Vdc

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Mounting Mode:  C-mount type

Height:  1.17 In

Width:  2.41 In

Depth:  5.59 In



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
