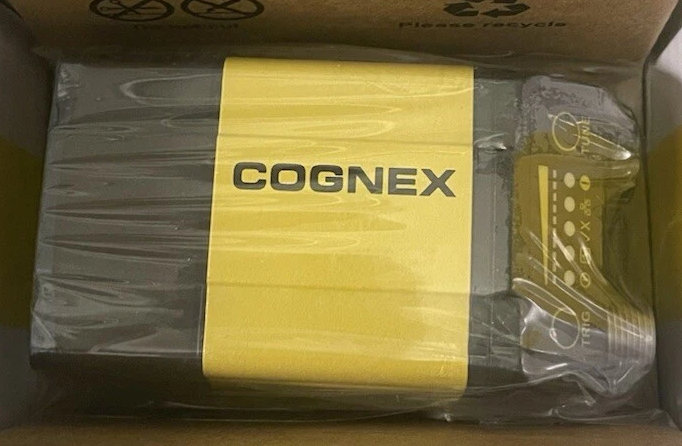

Cognex DMR-374X-MAX DataMan 370 2048x1536 1D/2D Fixed-Mount Barcode Reader

Overview

Cognex DMR-374X-MAX DataMan 370 2048x1536 1D/2D Fixed-Mount Barcode Reader.



Specifications

Model Number:  DMR-374X-MAX

Brand:  Cognex

Alt Part Number(s):  DMR-374X-MAX

Product Type:  Barcode Reader



Specifications

Brand:  Cognex

Model:  DMR-374X-MAX

Series:  DataMan 370

Image Sensor:  1/1.8" CMOS

Image Sensor Resolution:  2048 x 1536

Electronic Shutter Speed:  Min. exposure: 15 μs Max. exposure: 1000 μs with internal illumination/10000  μs with external illumination

Max Acquisition:   Up to 80 Hz

Lens Options:  Liquid lens 8 mm, 10 mm, 16 mm, 24 mm, 35 mm; C-mount 12 mm, 16 mm, 25 mm, 35 mm, 40 mm

Status Outputs:  Beeper, 5 multifunctional LEDs, 10 LED bar array, 360-degree indicator

Connection Type:  8-pin M12 (X-coded) connector (Ethernet) 12-pin M12 connector (Supply) 4-pin M12 connector (External light control) SD card slot

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Height:  1.6”

Width:  2.1”

Depth:  3.5”

* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
